Anti-vibration rubber, METAL PERFORMANCE "2M"






 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reader




FEATURES:

Anti-vibration rubber, rubber metal cylinder with two chambers formed by two screws washers pressed on, then galvanized (zinc plating), sand and adhesive surfaces, on vulcanized natural rubber compound.

ON DEMAND:

And 'possible to produce anti-vibration rubber with different characteristics and with different sizes of screws, Shore A hardness and type of compound basis.

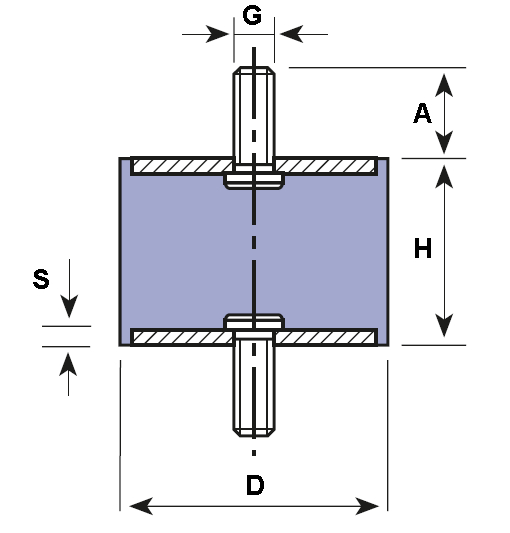

Code2M DHAGSMax load Incl. (Kg)Max cutting load. (Kg)
2M 1515 - 5MA15x151515145MA2205
2M 1520 - 5MA15x201520145MA2 184
2M 2015 - 6MA20x152015186MA2306
2M 2020 - 6MA20x202020186MA2 306
2M 2025 - 6MA20x252025186MA2255
2M 2520 - 6MA25x202520236MA2 5010
2M 2525 - 6MA25x252525236MA2308
2M 2530 - 6MA25x302530236MA2 277
2M 3020 - 8MA30x203020238MA25015
2M 3030 - 8MA30x303030238MA2 4512
2M 3040 - 8MA30x403040238MA24010
2M 4030 - 8MA40x304030238MA2 10025
2M 4030 - 10 MA40x3040302710MA210025
2M 4040 - 8MA40x404040238MA2 10020
2M 4040 - 10MA40x4040402710MA28020
2M 5020 - 10MA50x2050202710MA2.5 15035
2M 5030 - 10MA50x3050302710MA2.515035
2M 5040 - 10MA50x4050402710MA2.5 14030
2M 5045 - 10MA50x4550452710MA2.513530
2M 5050 - 10MA50x5050502710MA2.5 13025
2M 6030 - 12MA60x3060303712MA2.520040
2M 6040 - 12MA60x4060403712MA2.5 19035
2M 6050 - 12MA60x5060503712MA2.518035
2M 7525 - 12MA75x2575253712MA3 30060
2M 7530 - 12MA75x3075303712MA328050
2M 7540 - 12MA75x4075403712MA3 28050
2M 7550 - 12MA75x5075503712MA327050
2M 7555 - 12MA75x5575553712MA3 27050
2M 10040 - 16th100x40100404716mA3700140
2M 10050 - 16th100x50100501716mA3 700140
2M 10060 - 16th100x60100604716mA3700140

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
