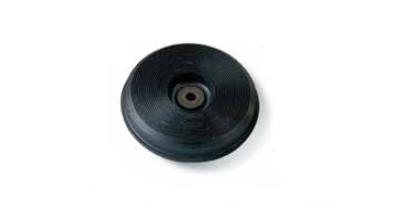

Rubber mountings, rubber metal "SEDOR"





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reader




FEATURES:

The rubber mountings, rubber metal SEDOR feet are made of a metallic plate on the lower part of which is cured with an elastic truncated conical profile.



ON DEMAND:

And 'possible to produce anti-vibration rubber with different characteristics, hardness Shore A type of basic compound, surface treatments or coatings on metal parts.



All measurements are in millimeters.




CodeTYPE OA (mm)OB (mm)OC for. (Mm)OC max. (Mm)HCar. Stat. Normal (kg)
SEDOR 10010050456.3M121850
SEDOR 25025069646.3M1418 150
SEDOR 50050091866.3M1418350
SEDOR 100 / A10013013810M2025 900

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
