OR RUBBER "NBR 70 SH A"

	DOWNLOAD CATALOG
	To view them you must have installed the program Adobe Acrobat Reader

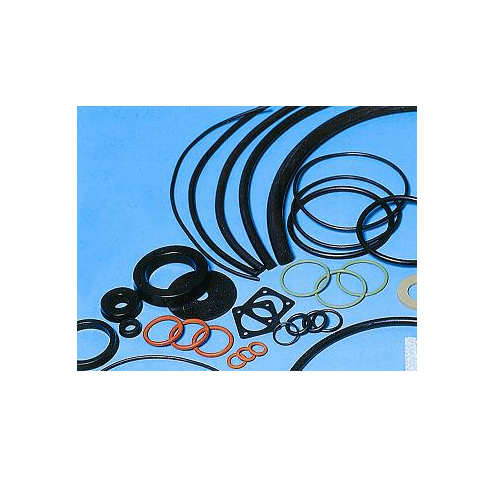

An O-ring is a ring of circular section elastomer used as mechanical seal or seal. Are designed to be inserted into a groove and compressed during assembly between two or more parties, creating a seal.

The joint may be static or, sometimes, allow small movements between the parts and the ring. The joints in motion often require adequate lubrication to reduce friction.

O-ring seals are quite common, used in projects because of their low cost and their resistance to tens of megapascals pressure.

The U.S. Patent O-ring was recorded in 1937 by Danish settantaduenne Niels Christensen [1], a machinist who came to America in 1891 also recorded that the patent for an air brake system for streetcars. Despite his legal efforts, his intellectual property passed from company to company to Westinghouse. During the Second World War, the U.S. government or the key-ring for war, to manufacture to other companies. Christensen received a payment of $ 75,000, and after his death and many lawsuits, an additional $ 100,000 payment to his descendants.

ELASTOMER:

- Nitrile rubber NBR (copolymer of butadiene and acrylonitrile).

- Used for most applications required for conventional fluids.

- Operating temperature: -30 ÷ +100 ° C.

- Standard Color: BLACK.

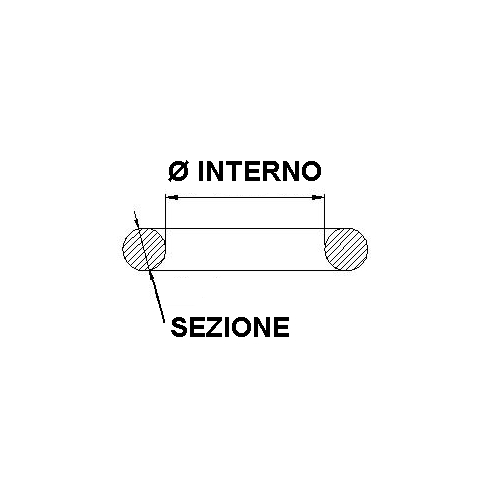

Code	English Cod	Inside Ø	Section	Color
OR 1.78 x 1.78	2007	1.78	1.78	BLACK
OR 2:57 x 1.78	2,010	2:57	1.78	BLACK
OR 2.90 x 1.78	2012 101	2.90	1.78	BLACK
OR 3.68 x 1.78	2015 102	3.68	1.78	BLACK
OR 4:47 x 1.78	2018 103	4:47	1.78	BLACK
OR 5.28 x 1.78	2021 104	5.28	1.78	BLACK
OR 6:07 x 1.78	2025 105	6:07	1.78	BLACK
OR 6.75 x 1.78	106	6.75	1.78	BLACK
OR 7.65 x 1.78	2031 107	7.65	1.78	BLACK
OR 8.73 x 1.78	108	8.73	1.78	BLACK
OR 9.25 x 1.78	2037 110	9.25	1.78	BLACK
OR 10.82 x 1.78	2043	10.82	1.78	BLACK
OR 11.11 x 1.78	114	11:11	1.78	BLACK
X 1.78 OR 12:42	2050	12:42	1.78	BLACK
OR 14.00 x 1.78	2056	14:00	1.78	BLACK
OR 15.60 x 1.78	2062	15.60	1.78	BLACK
X 1.78 OR 17:17	2068	17:17	1.78	BLACK
OR 18.77 x 1.78	2075	18.77	1.78	BLACK
X 1.78 OR 20:35	2081	20:35	1.78	BLACK
OR 21.95 x 1.78	2087	21.95	1.78	BLACK
X 1.78 OR 23:52	2093	23:52	1.78	BLACK
OR 25.12 x 1.78	2100	25.12	1.78	BLACK
OR 26.70 x 1.78	2106	26.70	1.78	BLACK
OR 28.30 x 1.78	2112	28.30	1.78	BLACK
OR 29.87 x 1.78	2118	29.87	1.78	BLACK
OR 31.47 x 1.78	2125	31.47	1.78	BLACK
OR 33.05 x 1.78	2131	33.05	1.78	BLACK
OR 34.65 x 1.78	2137	34.65	1.78	BLACK
OR 37.82 x 1.78	2150	37.82	1.78	BLACK
OR 41.00 x 1.78	2162	41.00	1.78	BLACK
OR 44.17 x 1.78	2175	44.17	1.78	BLACK
OR 47.35 x 1.78	2187	47.35	1.78	BLACK
OR 50.52 x 1.78	2200	50.52	1.78	BLACK
OR 53.70 x 1.78	2212	53.70	1.78	BLACK
OR 56.87 x 1.78	2225	56.87	1.78	BLACK
OR 60.05 x 1.78	2237	60.05	1.78	BLACK
OR 63.22 x 1.78	2250	63.22	1.78	BLACK
OR 66.40 x 1.78	2262	66.40	1.78	BLACK
OR 69.57 x 1.78	2275	69.57	1.78	BLACK
OR 72.75 x 1.78	2287	72.75	1.78	BLACK
OR 75.92 x 1.78	2300	75.92	1.78	BLACK
OR 82.27 x 1.78	2325	82.27	1.78	BLACK
OR 88.62 x 1.78	2350	88.62	1.78	BLACK
OR 94.97 x 1.78	2375	94.97	1.78	BLACK
OR 101.32 x 1.78	2400	101.32	1.78	BLACK
OR 107.67 x 1.78	2425	107.67	1.78	BLACK
OR 114.02 x 1.78	2450	114.02	1.78	BLACK
OR 120.37 x 1.78	2475	120.37	1.78	BLACK
OR 126.72 x 1.78	2500	126.72	1.78	BLACK
OR 133.07 x 1.78	2525	133.07	1.78	BLACK
OR 1.24 x 2.62		1.24	2.62	BLACK
OR 2:06 x 2.62		2:06	2.62	BLACK
OR 2.84 x 2.62		2.84	2.62	BLACK
OR 3.63 x 2.62		3.63	2.62	BLACK
OR 4:42 x 2.62		4:42	2.62	BLACK
OR 5.23 x 2.62	3021	5.23	2.62	BLACK
OR 6:02 x 2.62	3024	6:02	2.62	BLACK
OR 7:59 x 2.62	3030	7:59	2.62	BLACK
OR 9.13 x 2.62	109	9.13	2.62	BLACK
OR 9.19 x 2.62	3037 111	9.19	2.62	BLACK
OR 9.90 x 2.62	112	9.90	2.62	BLACK
OR 10.77 x 2.62	3043 113	10.77	2.62	BLACK
OR 11.91 x 2.62	115	11.91	2.62	BLACK
X 2.62 OR 12:37	3050 116	12:37	2.62	BLACK
OR 13.10 x 2.62	117	13:10	2.62	BLACK
OR 13.94 x 2.62	3056 118	13.94	2.62	BLACK
OR 15.08 x 2.62	119	15:08	2.62	BLACK
X 2.62 OR 15:54	3062 120	15:54	2.62	BLACK
OR 15.88 x 2.62	121	15.88	2.62	BLACK
OR 17.12 x 2.62	3068 122	17:12	2.62	BLACK
OR 17.86 x 2.62	123	17.86	2.62	BLACK
OR 18.72 x 2.62	3075 124	18.72	2.62	BLACK
X 2.62 OR 20:30	3081 127	20:30	2.62	BLACK
OR 20.64 x 2.62	128	20.64	2.62	BLACK
OR 21.89 x 2.62	3087	21.89	2.62	BLACK
X 2.62 OR 22:23	130	22:23	2.62	BLACK
X 2.62 OR 23:47	3093	23:47	2.62	BLACK
OR 23.81 x 2.62	132	23.81	2.62	BLACK
OR 25.07 x 2.62	3100	25.07	2.62	BLACK
OR 26.64 x 2.62	3106	26.64	2.62	BLACK
OR 28.24 x 2.62	3112	28.24	2.62	BLACK
OR 29.82 x 2.62	3118	29.82	2.62	BLACK
OR 31.42 x 2.62	3125	31.42	2.62	BLACK
OR 32.99 x 2.62	3131	32.99	2.62	BLACK
OR 34.59 x 2.62	3137	34.59	2.62	BLACK
OR 36.17 x 2.62	3143	36.17	2.62	BLACK
OR 37.77 x 2.62	3150	37.77	2.62	BLACK
OR 39.34 x 2.62	3156	39.34	2.62	BLACK
OR 40.94 x 2.62	3162	40.94	2.62	BLACK
OR 42.52 x 2.62	3168	42.52	2.62	BLACK
OR 44.12 x 2.62	3175	44.12	2.62	BLACK
OR 45.69 x 2.62	3181	45.69	2.62	BLACK
OR 47.29 x 2.62	3187	47.29	2.62	BLACK
OR 48.90 x 2.62	3193	48.90	2.62	BLACK
OR 50.47 x 2.62	3200	50.47	2.62	BLACK
OR 52.07 x 2.62	3206	52.07	2.62	BLACK
OR 53.64 x 2.62	3212	53.64	2.62	BLACK
OR 55.25 x 2.62	3218	55.25	2.62	BLACK
OR 56.82 x 2.62	3225	56.82	2.62	BLACK
OR 58.42 x 2.62	3231	58.42	2.62	BLACK
OR 59.99 x 2.62	3237	59.99	2.62	BLACK
OR 61.60 x 2.62	3243	61.60	2.62	BLACK
OR 63.17 x 2.62	3250	63.17	2.62	BLACK
OR 64.77 x 2.62	3256	64.77	2.62	BLACK
OR 66.34 x 2.62	3262	66.34	2.62	BLACK
OR 67.95 x 2.62	3268	67.95	2.62	BLACK
OR 69.52 x 2.62	3275	69.52	2.62	BLACK
OR 71.12 x 2.62	3281	71.12	2.62	BLACK
OR 72.69 x 2.62	3287	72.69	2.62	BLACK
OR 75.87 x 2.62	3300	75.87	2.62	BLACK
OR 82.22 x 2.62	3325	82.22	2.62	BLACK
OR 88.57 x 2.62	3350	88.57	2.62	BLACK
OR 94.92 x 2.62	3375	94.92	2.62	BLACK
OR 101.27 x 2.62	3400	101.27	2.62	BLACK
OR 107.62 x 2.62	3425	107.62	2.62	BLACK
OR 113.97 x 2.62	3450	113.97	2.62	BLACK
X 2.62 OR 120.32	3475	120.32	2.62	BLACK
OR 126.67 x 2.62	3500	126.67	2.62	BLACK
OR 133.02 x 2.62	3525	133.02	2.62	BLACK
OR 139.37 x 2.62	3550	139.37	2.62	BLACK
OR 145.72 x 2.62	3575	145.72	2.62	BLACK
OR 152.07 x 2.62	3600	152.07	2.62	BLACK
OR 158.42 x 2.62	3625	158.42	2.62	BLACK
OR 164.77 x 2.62	3650	164.77	2.62	BLACK
OR 171.12 x 2.62	3675	171.12	2.62	BLACK
OR 177.47 x 2.62	3700	177.47	2.62	BLACK
OR 183.82 x 2.62	3725	183.82	2.62	BLACK
OR 190.17 x 2.62	3750	190.17	2.62	BLACK
OR 196.52 x 2.62	3775	196.52	2.62	BLACK
OR 202.87 x 2.62	3800	202.87	2.62	BLACK
OR 209.22 x 2.62	3825	209.22	2.62	BLACK
OR 215.57 x 2.62	3850	215.57	2.62	BLACK
OR 221.92 x 2.62	3875	221.92	2.62	BLACK
OR 228.27 x 2.62	3900	228.27	2.62	BLACK
OR 234.62 x 2.62	3925	234.62	2.62	BLACK
OR 240.97 x 2.62	3950	240.97	2.62	BLACK
OR 247.32 x 2.62	3975	247.32	2.62	BLACK
X OR 4:34 3:53		4:34	3:53	BLACK
OR 5.94 x 3:53		5.94	3:53	BLACK
X OR 7:52 3:53	4028	7:52	3:53	BLACK
OR 9.12 x 3:53	4036	9.12	3:53	BLACK
OR 10.69 x 3:53	4042	10.69	3:53	BLACK
X OR 12:29 3:53	4050	12:29	3:53	BLACK
OR 13.87 x 3:53	4055	13.87	3:53	BLACK
X OR 15:47 3:53	4061	15:47	3:53	BLACK
X OR 17:04 3:53	4067	17:04	3:53	BLACK
OR 18.64 x 3:53	4075 125	18.64	3:53	BLACK
X OR 20:22 3:53	4081 126	20:22	3:53	BLACK
OR 21.82 x 3:53	4087 129	21.82	3:53	BLACK
X OR 23:39 3:53	4093 131	23:39	3:53	BLACK
OR 24.99 x 3:53	4100 133	24.99	3:53	BLACK
OR 25.80 x 3:53	134	25.80	3:53	BLACK
OR 26.57 x 3:53	4106 135	26.57	3:53	BLACK
OR 28.17 x 3:53	4112 136	28.17	3:53	BLACK
OR 29.74 x 3:53	4118 137	29.74	3:53	BLACK
OR 31.34 x 3:53	4125 138	31.34	3:53	BLACK
OR 32.92 x 3:53	4131 139	32.92	3:53	BLACK
OR 34.52 x 3:53	4137 140	34.52	3:53	BLACK
OR 36.09 x 3:53	4143 141	36.09	3:53	BLACK
OR 37.69 x 3:53	4150 142	37.69	3:53	BLACK
OR 39.70 x 3:53	144	39.70	3:53	BLACK
OR 40.87 x 3:53	4162	40.87	3:53	BLACK
OR 41.28 x 3:53	146	41.28	3:53	BLACK
OR 42.86 x 3:53	147	42.86	3:53	BLACK
OR 44.04 x 3:53	4175	44.04	3:53	BLACK
OR 44.45 x 3:53	149	44.45	3:53	BLACK
OR 46.04 x 3:53	150	46.04	3:53	BLACK
OR 47.22 x 3:53	4187	47.22	3:53	BLACK
OR 47.62 x 3:53	152	47.62	3:53	BLACK
OR 49.20 x 3:53	153	49.20	3:53	BLACK
OR 50.39 x 3:53	4200	50.39	3:53	BLACK
OR 50.80 x 3:53	155	50.80	3:53	BLACK
OR 52.40 x 3:53	156	52.40	3:53	BLACK
OR 53.57 x 3:53	4212	53.57	3:53	BLACK
OR 53.97 x 3:53	158	53.97	3:53	BLACK
OR 55.56 x 3:53	159	55.56	3:53	BLACK
OR 56.74 x 3:53	4225	56.74	3:53	BLACK
OR 57.15 x 3:53	161	57.15	3:53	BLACK
OR 58.74 x 3:53	162	58.74	3:53	BLACK
OR 59.92 x 3:53	4237	59.92	3:53	BLACK
OR 60.32 x 3:53	164	60.32	3:53	BLACK
OR 61.90 x 3:53	165	61.90	3:53	BLACK
OR 63.09 x 3:53	4250	63.09	3:53	BLACK
OR 63.50 x 3:53	167	63.50	3:53	BLACK
OR 65.10 x 3:53	168	65.10	3:53	BLACK
OR 66.27 x 3:53	4262	66.27	3:53	BLACK
OR 66.67 x 3:53	170	66.67	3:53	BLACK
OR 68.26 x 3:53	171	68.26	3:53	BLACK
OR 69.44 x 3:53	4275	69.44	3:53	BLACK
OR 69.85 x 3:53	173	69.85	3:53	BLACK
OR 71.44 x 3:53	174	71.44	3:53	BLACK
OR 72.62 x 3:53	4287	72.62	3:53	BLACK
OR 73.02 x 3:53	176	73.02	3:53	BLACK
OR 74.60 x 3:53	177	74.60	3:53	BLACK
OR 75.79 x 3:53	4300	75.79	3:53	BLACK
OR 78.97 x 3:53	4321	78.97	3:53	BLACK
OR 82.14 x 3:53	4325	82.14	3:53	BLACK
OR 85.32 x 3:53	4337	85.32	3:53	BLACK
OR 88.49 x 3:53	4350	88.49	3:53	BLACK
OR 91.67 x 3:53	4362	91.67	3:53	BLACK
OR 94.84 x 3:53	4375	94.84	3:53	BLACK
OR 98.02 x 3:53	4387	98.02	3:53	BLACK
101.19 x OR 3:53	4400	101.19	3:53	BLACK
104.37 x OR 3:53	4412	104.37	3:53	BLACK
107.54 x OR 3:53	4425	107.54	3:53	BLACK
110.72 x OR 3:53	4437	110.72	3:53	BLACK
113.89 x OR 3:53	4450	113.89	3:53	BLACK
117.07 x OR 3:53	4462	117.07	3:53	BLACK
120.24 x OR 3:53	4475	120.24	3:53	BLACK
123.42 x OR 3:53	4487	123.42	3:53	BLACK
126.59 x OR 3:53	4500	126.59	3:53	BLACK
129.77 x OR 3:53	4512	129.77	3:53	BLACK
132.94 x OR 3:53	4525	132.94	3:53	BLACK
136.12 x OR 3:53	4537	136.12	3:53	BLACK
139.29 x OR 3:53	4550	139.29	3:53	BLACK
142.47 x OR 3:53	4562	142.47	3:53	BLACK
145.64 x OR 3:53	4575	145.64	3:53	BLACK
148.82 x OR 3:53	4587	148.82	3:53	BLACK
151.99 x OR 3:53	4600	151.99	3:53	BLACK
158.34 x OR 3:53	4652	158.34	3:53	BLACK
164.69 x OR 3:53	4650	164.69	3:53	BLACK
171.04 x OR 3:53	4675	171.04	3:53	BLACK
177.39 x OR 3:53	4700	177.39	3:53	BLACK
183.74 x OR 3:53	4725	183.74	3:53	BLACK
190.09 x OR 3:53	4750	190.09	3:53	BLACK
196.44 x OR 3:53	4775	196.44	3:53	BLACK
202.79 x OR 3:53	4800	202.79	3:53	BLACK
209.14 x OR 3:53	4825	209.14	3:53	BLACK
215.49 x OR 3:53	4850	215.49	3:53	BLACK
221.84 x OR 3:53	4875	221.84	3:53	BLACK
228.19 x OR 3:53	4900	228.19	3:53	BLACK
234.54 x OR 3:53	4925	234.54	3:53	BLACK
240.89 x OR 3:53	4950	240.89	3:53	BLACK
247.26 x OR 3:53	4975	247.26	3:53	BLACK
253.59 x OR 3:53	41000	253.59	3:53	BLACK
266.29 x OR 3:53	41050	266.29	3:53	BLACK
278.99 x OR 3:53	41100	278.99	3:53	BLACK
291.69 x OR 3:53	41150	291.69	3:53	BLACK
304.39 x OR 3:53	41200	304.39	3:53	BLACK
329.79 x OR 3:53	41300	329.79	3:53	BLACK
355.19 x OR 3:53	41400	355.19	3:53	BLACK
380.59 x OR 3:53	41500	380.59	3:53	BLACK
405.26 x OR 3:53	41600	405.26	3:53	BLACK
430.66 x OR 3:53	41700	430.66	3:53	BLACK
456.06 x OR 3:53	41800	456.06	3:53	BLACK
X OR 10:46 5:33		10:46	5:33	BLACK
X OR 12:07 5:33		12:07	5:33	BLACK
OR 13.64 x 5:33		13.64	5:33	BLACK
X OR 15:24 5:33		15:24	5:33	BLACK
OR 16.81 x 5:33		16.81	5:33	BLACK
X OR 18:42 5:33		18:42	5:33	BLACK
OR 19.99 x 5:33		19.99	5:33	BLACK
X OR 21:59 5:33		21:59	5:33	BLACK
X OR 23:16 5:33		23:16	5:33	BLACK
OR 24.77 x 5:33		24.77	5:33	BLACK
OR 26.34 x 5:33		26.34	5:33	BLACK
OR 27.94 x 5:33		27.94	5:33	BLACK
OR 29.51 x 5:33		29.51	5:33	BLACK
OR 31.12 x 5:33		31.12	5:33	BLACK
OR 32.69 x 5:33		32.69	5:33	BLACK
OR 34.29 x 5:33		34.29	5:33	BLACK
OR 37.47 x 5:33	6150 143	37.47	5:33	BLACK
OR 40.64 x 5:33	6162 145	40.64	5:33	BLACK
OR 43.82 x 5:33	6176 148	43.82	5:33	BLACK
OR 46.99 x 5:33	6187 151	46.99	5:33	BLACK
OR 50.17 x 5:33	6200 154	50.17	5:33	BLACK
OR 53.34 x 5:33	6212 157	53.34	5:33	BLACK
OR 56.52 x 5:33	6225 160	56.52	5:33	BLACK
OR 59.69 x 5:33	6237 163	59.69	5:33	BLACK
OR 62.87 x 5:33	6250 166	62.87	5:33	BLACK
OR 66.04 x 5:33	6262 169	66.04	5:33	BLACK
OR 69.22 x 5:33	6275 172	69.22	5:33	BLACK
OR 72.39 x 5:33	6287 175	72.39	5:33	BLACK
OR 74.63 x 5:33	178	74.63	5:33	BLACK
OR 75.57 x 5:33	6300 179	75.57	5:33	BLACK
OR 78.74 x 5:33	6312 180	78.74	5:33	BLACK
OR 79.73 x 5:33	181	79.73	5:33	BLACK
OR 81.92 x 5:33	6325 182	81.92	5:33	BLACK
OR 85.09 x 5:33	6337 183	85.09	5:33	BLACK
OR 88.27 x 5:33	6350 184	88.27	5:33	BLACK
OR 89.69 x 5:33	185	89.69	5:33	BLACK
OR 91.44 x 5:33	6362 186	91.44	5:33	BLACK
OR 94.62 x 5:33	6375 187	94.62	5:33	BLACK
OR 97.79 x 5:33	6387 188	97.79	5:33	BLACK
100.00 x OR 5:33	189	100.00	5:33	BLACK
100.97 x OR 5:33	6400 190	100.97	5:33	BLACK
104.14 x OR 5:33	6412 191	104.14	5:33	BLACK
107.32 x OR 5:33	6425 192	107.32	5:33	BLACK
109.54 x OR 5:33	193	109.54	5:33	BLACK
110.49 x OR 5:33	6437 194	110.49	5:33	BLACK
113.67 x OR 5:33	6450 195	113.67	5:33	BLACK
116.84 x OR 5:33	U.S. 2-350	116.84	5:33	BLACK
117.48 x OR 5:33	199	117.48	5:33	BLACK
120.01 x OR 5:33	U.S. 2-351	120.01	5:33	BLACK
120.65 x OR 5:33	201	120.65	5:33	BLACK
123.19 x OR 5:33	U.S. 2-352	123.19	5:33	BLACK
123.83 x OR 5:33	203	123.83	5:33	BLACK
126.36 x OR 5:33	U.S. 2-353	126.36	5:33	BLACK
127.00 x OR 5:33	206	127.00	5:33	BLACK
129.54 x OR 5:33	U.S. 2-354	129.54	5:33	BLACK
130.18 x OR 5:33	208	130.18	5:33	BLACK
132.71 x OR 5:33	U.S. 2-355	132.71	5:33	BLACK
133.35 x OR 5:33	210	133.35	5:33	BLACK
135.89 x OR 5:33	U.S. 2-356	135.89	5:33	BLACK
136.53 x OR 5:33	213	136.53	5:33	BLACK
139.06 x OR 5:33	U.S. 2-357	139.06	5:33	BLACK
139.70 x OR 5:33	215	139.70	5:33	BLACK
142.24 x OR 5:33	U.S. 2-358	142.24	5:33	BLACK
142.88 x OR 5:33	217	142.88	5:33	BLACK
145.41 x OR 5:33	U.S. 2-359	145.41	5:33	BLACK
146.05 x OR 5:33	219	146.05	5:33	BLACK
148.59 x OR 5:33	U.S. 2-360	148.59	5:33	BLACK
149.23 x OR 5:33	221	149.23	5:33	BLACK
151.77 x OR 5:33	6600	151.77	5:33	BLACK
158.12 x OR 5:33	6625	158.12	5:33	BLACK
164.47 x OR 5:33	6645	164.47	5:33	BLACK
170.82 x OR 5:33	6670	170.82	5:33	BLACK
177.17 x OR 5:33	6700	177.17	5:33	BLACK
183.52 x OR 5:33	6720	183.52	5:33	BLACK
189.87 x OR 5:33	6745	189.87	5:33	BLACK
196.22 x OR 5:33	6775	196.22	5:33	BLACK
202.57 x OR 5:33	6795	202.57	5:33	BLACK
208.92 x OR 5:33	6820	208.92	5:33	BLACK
215.27 x OR 5:33	6850	215.27	5:33	BLACK
221.62 x OR 5:33	6870	221.62	5:33	BLACK
227.97 x OR 5:33	6895	227.97	5:33	BLACK
234.32 x OR 5:33	6920	234.32	5:33	BLACK
240.67 x OR 5:33	6945	240.67	5:33	BLACK
247.02 x OR 5:33	6975	247.02	5:33	BLACK
253.37 x OR 5:33	6995	253.37	5:33	BLACK
266.07 x OR 5:33	61050	266.07	5:33	BLACK
278.77 x OR 5:33	61100	278.77	5:33	BLACK
291.47 x OR 5:33	61150	291.47	5:33	BLACK
304.17 x OR 5:33	61200	304.17	5:33	BLACK
329.57 x OR 5:33	61300	329.57	5:33	BLACK
354.97 x OR 5:33	61400	354.97	5:33	BLACK
380.37 x OR 5:33	61500	380.37	5:33	BLACK
405.26 x OR 5:33	61600	405.26	5:33	BLACK
430.66 x OR 5:33	61700	430.66	5:33	BLACK
456.06 x OR 5:33	61800	456.06	5:33	BLACK
481.41 x OR 5:33	61900	481.41	5:33	BLACK
506.81 x OR 5:33	62000	506.81	5:33	BLACK
532.21 x OR 5:33	62100	532.21	5:33	BLACK
557.61 x OR 5:33	62200	557.61	5:33	BLACK
582.68 x OR 5:33	62300	582.68	5:33	BLACK
608.08 x OR 5:33	62400	608.08	5:33	BLACK
633.48 x OR 5:33	62500	633.48	5:33	BLACK
658.88 x OR 5:33	62600	658.88	5:33	BLACK
OR 113.67 x 6.99	8450 196	113.67	6.99	BLACK
OR 114.70 x 6.99	197	114.70	6.99	BLACK
OR 116.84 x 6.99	8462 198	116.84	6.99	BLACK
OR 120.02 x 6.99	8475 200	120.02	6.99	BLACK
OR 123.19 x 6.99	8487 202	123.19	6.99	BLACK
OR 124.60 x 6.99	204	124.60	6.99	BLACK
OR 126.37 x 6.99	8500 205	126.37	6.99	BLACK
OR 129.54 x 6.99	8512 207	129.54	6.99	BLACK
OR 132.72 x 6.99	8525 209	132.72	6.99	BLACK
OR 134.50 x 6.99	211	134.50	6.99	BLACK
OR 135.89 x 6.99	8537 212	135.89	6.99	BLACK
OR 139.07 x 6.99	8550 214	139.07	6.99	BLACK
OR 142.24 x 6.99	8562 216	142.24	6.99	BLACK
OR 145.42 x 6.99	8575 218	145.42	6.99	BLACK
OR 148.59 x 6.99	8587 220	148.59	6.99	BLACK
OR 151.77 x 6.99	8600 222	151.77	6.99	BLACK
OR 155.60 x 6.99	223	155.60	6.99	BLACK
OR 158.12 x 6.99	8625 224	158.12	6.99	BLACK
OR 159.50 x 6.99	225	159.50	6.99	BLACK
OR 161.90 x 6.99	226	161.90	6.99	BLACK
OR 164.47 x 6.99	8650 227	164.47	6.99	BLACK
OR 166.70 x 6.99	228	166.70	6.99	BLACK
OR 168.30 x 6.99	229	168.30	6.99	BLACK
OR 170.82 x 6.99	8675 230	170.82	6.99	BLACK
OR 174.60 x 6.99	231	174.60	6.99	BLACK
OR 177.17 x 6.99	8700 232	177.17	6.99	BLACK
OR 181.00 x 6.99	233	181.00	6.99	BLACK
OR 183.52 x 6.99	8725 234	183.52	6.99	BLACK
OR 187.30 x 6.99	235	187.30	6.99	BLACK
OR 189.87 x 6.99	8750 236	189.87	6.99	BLACK
OR 193.70 x 6.99	237	193.70	6.99	BLACK
OR 196.22 x 6.99	8775 238	196.22	6.99	BLACK
OR 200.00 x 6.99	239	200.00	6.99	BLACK
OR 202.57 x 6.99	8800 240	202.57	6.99	BLACK
OR 208.92 x 6.99	8825 241	208.92	6.99	BLACK
OR 215.27 x 6.99	8850 242	215.27	6.99	BLACK
OR 221.62 x 6.99	8875 243	221.62	6.99	BLACK
OR 227.97 x 6.99	8900 244	227.97	6.99	BLACK
OR 234.32 x 6.99	8925 245	234.32	6.99	BLACK
OR 240.67 x 6.99	8950 246	240.67	6.99	BLACK
OR 247.00 x 6.99	8975 247	247.00	6.99	BLACK
OR 253.37 x 6.99	81000 248	253.37	6.99	BLACK
OR 259.70 x 6.99	81025 249	259.70	6.99	BLACK
OR 266.07 x 6.99	81050 250	266.07	6.99	BLACK
OR 272.40 x 6.99	81075 251	272.40	6.99	BLACK
OR 278.77 x 6.99	81100 252	278.77	6.99	BLACK
OR 285.10 x 6.99	81125 253	285.10	6.99	BLACK
OR 291.47 x 6.99	81150 254	291.47	6.99	BLACK
OR 297.80 x 6.99	81175 255	297.80	6.99	BLACK
OR 304.17 x 6.99	81200 256	304.17	6.99	BLACK
OR 316.87 x 6.99	81250 257	316.87	6.99	BLACK
OR 329.57 x 6.99	81300 258	329.57	6.99	BLACK
OR 342.27 x 6.99	81350 259	342.27	6.99	BLACK
OR 354.97 x 6.99	81400 260	354.97	6.99	BLACK
OR 367.67 x 6.99	81450 261	367.67	6.99	BLACK
OR 380.37 x 6.99	81500 262	380.37	6.99	BLACK
OR 393.07 x 6.99	81550 263	393.07	6.99	BLACK
OR 405.26 x 6.99	81600	405.26	6.99	BLACK
OR 417.96 x 6.99	81650	417.96	6.99	BLACK
OR 430.66 x 6.99	81700	430.66	6.99	BLACK
OR 443.36 x 6.99	81750	443.36	6.99	BLACK
OR 456.06 x 6.99	81800	456.06	6.99	BLACK
OR 468.76 x 6.99	81850	468.76	6.99	BLACK
OR 481.46 x 6.99	81900	481.46	6.99	BLACK
OR 494.16 x 6.99	81950	494.16	6.99	BLACK
OR 506.86 x 6.99	82000	506.86	6.99	BLACK
OR 532.26 x 6.99	82100	532.26	6.99	BLACK
OR 557.66 x 6.99	82200	557.66	6.99	BLACK
OR 658.88 x 6.99	82600	568.88	6.99	BLACK
OR 582.68 x 6.99	82300	582.68	6.99	BLACK
OR 608.80 x 6.99	82400	608.80	6.99	BLACK
OR 633.48 x 6.99	82500	633.48	6.99	BLACK

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.

© Copyright 2008-2009, All Rights Reserved - Tutti i nomi di prodotti e servizi menzionati nel Sito Web sono depositati delle rispettive societa'. Le informazioni fornite nel presente documento perseguono finalita' di carattere esclusivamente informativo.

Menu Principale

Menu' Esteso

Menu Informativo

Materiali speciali

Cookie

DOWNLOAD CATALOG
