OR RUBBER "VITON 75 SH A"

	DOWNLOAD CATALOG
	To view them you must have installed the program Adobe Acrobat Reader

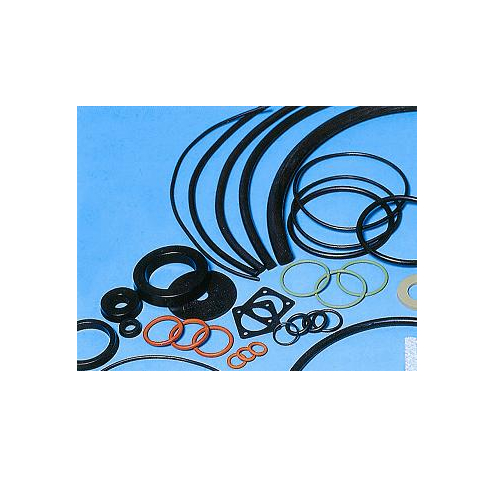

An O-ring is a ring of circular section elastomer used as mechanical seal or seal. Are designed to be inserted into a groove and compressed during assembly between two or more parties, creating a seal.

The joint may be static or, sometimes, allow small movements between the parts and the ring. The joints in motion often require adequate lubrication to reduce friction.

O-ring seals are quite common, used in projects because of their low cost and their resistance to tens of megapascals pressure.

The U.S. Patent O-ring was recorded in 1937 by Danish settantaduenne Niels Christensen [1], a machinist who came to America in 1891 also recorded that the patent for an air brake system for streetcars. Despite his legal efforts, his intellectual property passed from company to company to Westinghouse. During the Second World War, the U.S. government or the key-ring for war, to manufacture to other companies. Christensen received a payment of $ 75,000, and after his death and many lawsuits, an additional $ 100,000 payment to his descendants.

ELASTOMER:

- Rubber FPM, Trade Names: VITON by Du Pont, TECHNOFLON by Montedison, Fluorel by 3M).

- It has an 'excellent chemical resistance and is recommended for applications at high temperatures. - Temperature range: -30 +200 ° C. - Standard Color: BLACK.

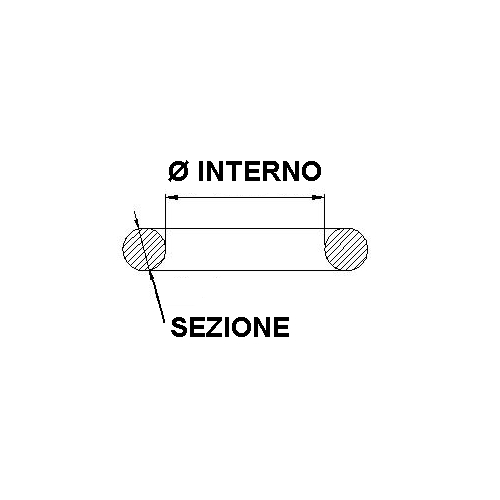

Code	English Cod	Inside Ø	Section	Color
OR 1.78 x 1.78 - FKM	2007	1.78	1.78	BLACK
X 1.78 OR 2:57 - FKM	2,010	2:57	1.78	BLACK
OR 2.90 x 1.78 - FKM	2012 101	2.90	1.78	BLACK
OR 3.68 x 1.78 - FKM	2015 102	3.68	1.78	BLACK
X 1.78 OR 4:47 - FKM	2018 103	4:47	1.78	BLACK
OR 5.28 x 1.78 - FKM	2021 104	5.28	1.78	BLACK
X 1.78 OR 6:07 - FKM	2025 105	6:07	1.78	BLACK
OR 6.75 x 1.78 - FKM	106	6.75	1.78	BLACK
OR 7.65 x 1.78 - FKM	2031 107	7.65	1.78	BLACK
OR 8.73 x 1.78 - FKM	108	8.73	1.78	BLACK
OR 9.25 x 1.78 - FKM	2037 110	9.25	1.78	BLACK
OR 10.82 x 1.78 - FKM	2043	10.82	1.78	BLACK
OR 11.11 x 1.78 - FKM	114	11:11	1.78	BLACK
X 1.78 OR 12:42 - FKM	2050	12:42	1.78	BLACK
OR 14.00 x 1.78 - FKM	2056	14:00	1.78	BLACK
OR 15.60 x 1.78 - FKM	2062	15.60	1.78	BLACK
X 1.78 OR 17:17 - FKM	2068	17:17	1.78	BLACK
OR 18.77 x 1.78 - FKM	2075	18.77	1.78	BLACK
X 1.78 OR 20:35 - FKM	2081	20:35	1.78	BLACK
OR 21.95 x 1.78 - FKM	2087	21.95	1.78	BLACK
X 1.78 OR 23:52 - FKM	2093	23:52	1.78	BLACK
OR 25.12 x 1.78 - FKM	2100	25.12	1.78	BLACK
OR 26.70 x 1.78 - FKM	2106	26.70	1.78	BLACK
OR 28.30 x 1.78 - FKM	2112	28.30	1.78	BLACK
OR 29.87 x 1.78 - FKM	2118	29.87	1.78	BLACK
OR 31.47 x 1.78 - FKM	2125	31.47	1.78	BLACK
OR 33.05 x 1.78 - FKM	2131	33.05	1.78	BLACK
OR 34.65 x 1.78 - FKM	2137	34.65	1.78	BLACK
OR 37.82 x 1.78 - FKM	2150	37.82	1.78	BLACK
OR 41.00 x 1.78 - FKM	2162	41.00	1.78	BLACK
OR 44.17 x 1.78 - FKM	2175	44.17	1.78	BLACK
OR 47.35 x 1.78 - FKM	2187	47.35	1.78	BLACK
OR 50.52 x 1.78 - FKM	2200	50.52	1.78	BLACK
OR 53.70 x 1.78 - FKM	2212	53.70	1.78	BLACK
OR 56.87 x 1.78 - FKM	2225	56.87	1.78	BLACK
OR 60.05 x 1.78 - FKM	2237	60.05	1.78	BLACK
OR 63.22 x 1.78 - FKM	2250	63.22	1.78	BLACK
OR 66.40 x 1.78 - FKM	2262	66.40	1.78	BLACK
OR 69.57 x 1.78 - FKM	2275	69.57	1.78	BLACK
OR 72.75 x 1.78 - FKM	2287	72.75	1.78	BLACK
OR 75.92 x 1.78 - FKM	2300	75.92	1.78	BLACK
OR 82.27 x 1.78 - FKM	2325	82.27	1.78	BLACK
OR 88.62 x 1.78 - FKM	2350	88.62	1.78	BLACK
OR 94.97 x 1.78 - FKM	2375	94.97	1.78	BLACK
OR 101.32 x 1.78 - FKM	2400	101.32	1.78	BLACK
OR 107.67 x 1.78 - FKM	2425	107.67	1.78	BLACK
OR 114.02 x 1.78 - FKM	2450	114.02	1.78	BLACK
OR 120.37 x 1.78 - FKM	2475	120.37	1.78	BLACK
OR 126.72 x 1.78 - FKM	2500	126.72	1.78	BLACK
OR 133.07 x 1.78 - FKM	2525	133.07	1.78	BLACK
OR 1.24 x 2.62 - FKM		1.24	2.62	BLACK
X 2.62 OR 2:06 - FKM		2:06	2.62	BLACK
OR 2.84 x 2.62 - FKM		2.84	2.62	BLACK
OR 3.63 x 2.62 - FKM		3.63	2.62	BLACK
X 2.62 OR 4:42 - FKM		4:42	2.62	BLACK
OR 5.23 x 2.62 - FKM	3021	5.23	2.62	BLACK
X 2.62 OR 6:02 - FKM	3024	6:02	2.62	BLACK
X 2.62 OR 7:59 - FKM	3030	7:59	2.62	BLACK
OR 9.13 x 2.62 - FKM	109	9.13	2.62	BLACK
OR 9.19 x 2.62 - FKM	3037 111	9.19	2.62	BLACK
OR 9.90 x 2.62 - FKM	112	9.90	2.62	BLACK
OR 10.77 x 2.62 - FKM	3043 113	10.77	2.62	BLACK
OR 11.91 x 2.62 - FKM	115	11.91	2.62	BLACK
X 2.62 OR 12:37 - FKM	3050 116	12:37	2.62	BLACK
OR 13.10 x 2.62 - FKM	117	13:10	2.62	BLACK
OR 13.94 x 2.62 - FKM	3056 118	13.94	2.62	BLACK
X 2.62 OR 15:54 - FKM	3062 120	15:54	2.62	BLACK
OR 15.88 x 2.62 - FKM	121	15.88	2.62	BLACK
OR 17.12 x 2.62 - FKM	3068 122	17:12	2.62	BLACK
OR 17.86 x 2.62 - FKM	123	17.86	2.62	BLACK
OR 18.72 x 2.62 - FKM	3075 124	18.72	2.62	BLACK
X 2.62 OR 20:30 - FKM	3081 127	20:30	2.62	BLACK
OR 20.64 x 2.62 - FKM	128	20.64	2.62	BLACK
OR 21.89 x 2.62 - FKM	3087	21.89	2.62	BLACK
X 2.62 OR 22:23 - FKM	130	22:23	2.62	BLACK
X 2.62 OR 23:47 - FKM	3093	23:47	2.62	BLACK
OR 23.81 x 2.62 - FKM	132	23.81	2.62	BLACK
OR 25.07 x 2.62 - FKM	3100	25.07	2.62	BLACK
OR 26.64 x 2.62 - FKM	3106	26.64	2.62	BLACK
OR 28.24 x 2.62 - FKM	3112	28.24	2.62	BLACK
OR 29.82 x 2.62 - FKM	3118	29.82	2.62	BLACK
OR 31.42 x 2.62 - FKM	3125	31.42	2.62	BLACK
OR 32.99 x 2.62 - FKM	3131	32.99	2.62	BLACK
OR 34.59 x 2.62 - FKM	3137	34.59	2.62	BLACK
OR 36.17 x 2.62 - FKM	3143	36.17	2.62	BLACK
OR 37.77 x 2.62 - FKM	3150	37.77	2.62	BLACK
OR 39.34 x 2.62 - FKM	3156	39.34	2.62	BLACK
OR 40.94 x 2.62 - FKM	3162	40.94	2.62	BLACK
OR 42.52 x 2.62 - FKM	3168	42.52	2.62	BLACK
OR 44.12 x 2.62 - FKM	3175	44.12	2.62	BLACK
OR 45.69 x 2.62 - FKM	3181	45.69	2.62	BLACK
OR 47.29 x 2.62 - FKM	3187	47.29	2.62	BLACK
OR 48.90 x 2.62 - FKM	3193	48.90	2.62	BLACK
OR 50.47 x 2.62 - FKM	3200	50.47	2.62	BLACK
OR 15.08 x 2.62 - FKM	119	51.08	2.62	BLACK
OR 52.07 x 2.62 - FKM	3206	52.07	2.62	BLACK
OR 53.64 x 2.62 - FKM	3212	53.64	2.62	BLACK
OR 55.25 x 2.62 - FKM	3218	55.25	2.62	BLACK
OR 56.82 x 2.62 - FKM	3225	56.82	2.62	BLACK
OR 58.42 x 2.62 - FKM	3231	58.42	2.62	BLACK
OR 59.99 x 2.62 - FKM	3237	59.99	2.62	BLACK
OR 61.60 x 2.62 - FKM	3243	61.60	2.62	BLACK
OR 63.17 x 2.62 - FKM	3250	63.17	2.62	BLACK
OR 64.77 x 2.62 - FKM	3256	64.77	2.62	BLACK
OR 66.34 x 2.62 - FKM	3262	66.34	2.62	BLACK
OR 67.95 x 2.62 - FKM	3268	67.95	2.62	BLACK
OR 69.52 x 2.62 - FKM	3275	69.52	2.62	BLACK
OR 71.12 x 2.62 - FKM	3281	71.12	2.62	BLACK
OR 72.69 x 2.62 - FKM	3287	72.69	2.62	BLACK
OR 75.87 x 2.62 - FKM	3300	75.87	2.62	BLACK
OR 82.22 x 2.62 - FKM	3325	82.22	2.62	BLACK
OR 88.57 x 2.62 - FKM	3350	88.57	2.62	BLACK
OR 94.92 x 2.62 - FKM	3375	94.92	2.62	BLACK
OR 101.27 x 2.62 - FKM	3400	101.27	2.62	BLACK
OR 107.62 x 2.62 - FKM	3425	107.62	2.62	BLACK
OR 113.97 x 2.62 - FKM	3450	113.97	2.62	BLACK
OR 120.32 x 2.62 - FKM	3475	120.32	2.62	BLACK
OR 126.67 x 2.62 - FKM	3500	126.67	2.62	BLACK
OR 133.02 x 2.62 - FKM	3525	133.02	2.62	BLACK
OR 139.37 x 2.62 - FKM	3550	139.37	2.62	BLACK
OR 145.72 x 2.62 - FKM	3575	145.72	2.62	BLACK
OR 152.07 x 2.62 - FKM	3600	152.07	2.62	BLACK
OR 158.42 x 2.62 - FKM	3625	158.42	2.62	BLACK
OR 164.77 x 2.62 - FKM	3650	164.77	2.62	BLACK
OR 171.12 x 2.62 - FKM	3675	171.12	2.62	BLACK
OR 177.47 x 2.62 - FKM	3700	177.47	2.62	BLACK
OR 183.82 x 2.62 - FKM	3725	183.82	2.62	BLACK
OR 190.17 x 2.62 - FKM	3750	190.17	2.62	BLACK
OR 196.52 x 2.62 - FKM	3775	196.52	2.62	BLACK
OR 202.87 x 2.62 - FKM	3800	202.87	2.62	BLACK
OR 209.22 x 2.62 - FKM	3825	209.22	2.62	BLACK
OR 215.57 x 2.62 - FKM	3850	215.57	2.62	BLACK
OR 221.92 x 2.62 - FKM	3875	221.92	2.62	BLACK
OR 228.27 x 2.62 - FKM	3900	228.27	2.62	BLACK
OR 234.62 x 2.62 - FKM	3925	234.62	2.62	BLACK
OR 240.97 x 2.62 - FKM	3950	240.97	2.62	BLACK
OR 247.32 x 2.62 - FKM	3975	247.32	2.62	BLACK
X OR 4:34 3:53 - FKM		4:34	3:53	BLACK
OR 5.94 x 3:53 - FKM		5.94	3:53	BLACK
X OR 7:52 3:53 - FKM	4028	7:52	3:53	BLACK
OR 9.12 x 3:53 - FKM	4036	9.12	3:53	BLACK
10.69 x OR 3:53 - FKM	4042	10.69	3:53	BLACK
X OR 12:29 3:53 - FKM	4050	12:29	3:53	BLACK
13.87 x OR 3:53 - FKM	4055	13.87	3:53	BLACK
X 15:47 OR 3:53 - FKM	4061	15:47	3:53	BLACK
X OR 17:04 3:53 - FKM	4067	17:04	3:53	BLACK
18.64 x OR 3:53 - FKM	4075 125	18.64	3:53	BLACK
X 20:22 OR 3:53 - FKM	4081 126	20:22	3:53	BLACK
21.82 x OR 3:53 - FKM	4087 129	21.82	3:53	BLACK
X 23:39 OR 3:53 - FKM	4093 131	23:39	3:53	BLACK
24.99 x OR 3:53 - FKM	4100 133	24.99	3:53	BLACK
25.80 x OR 3:53 - FKM	134	25.80	3:53	BLACK
26.57 x OR 3:53 - FKM	4106 135	26.57	3:53	BLACK
28.17 x OR 3:53 - FKM	4112 136	28.17	3:53	BLACK
29.74 x OR 3:53 - FKM	4118 137	29.74	3:53	BLACK
31.34 x OR 3:53 - FKM	4125 138	31.34	3:53	BLACK
32.92 x OR 3:53 - FKM	4131 139	32.92	3:53	BLACK
34.52 x OR 3:53 - FKM	4137 140	34.52	3:53	BLACK
36.09 x OR 3:53 - FKM	4143 141	36.09	3:53	BLACK
37.69 x OR 3:53 - FKM	4150 142	37.69	3:53	BLACK
39.70 x OR 3:53 - FKM	144	39.70	3:53	BLACK
40.87 x OR 3:53 - FKM	4162	40.87	3:53	BLACK
41.28 x OR 3:53 - FKM	146	41.28	3:53	BLACK
42.86 x OR 3:53 - FKM	147	42.86	3:53	BLACK
44.04 x OR 3:53 - FKM	4175	44.04	3:53	BLACK
45.45 x OR 3:53 - FKM	149	45.45	3:53	BLACK
46.04 x OR 3:53 - FKM	150	46.04	3:53	BLACK
47.22 x OR 3:53 - FKM	4187	47.22	3:53	BLACK
47.62 x OR 3:53 - FKM	152	47.62	3:53	BLACK
49.20 x OR 3:53 - FKM	153	49.20	3:53	BLACK
50.39 x OR 3:53 - FKM	4200	50.39	3:53	BLACK
50.80 x OR 3:53 - FKM	155	50.80	3:53	BLACK
52.40 x OR 3:53 - FKM	156	52.40	3:53	BLACK
53.57 x OR 3:53 - FKM	4212	53.57	3:53	BLACK
53.97 x OR 3:53 - FKM	158	53.97	3:53	BLACK
55.56 x OR 3:53 - FKM	159	55.56	3:53	BLACK
56.74 x OR 3:53 - FKM	4225	56.74	3:53	BLACK
57.15 x OR 3:53 - FKM	161	57.15	3:53	BLACK
58.74 x OR 3:53 - FKM	162	58.74	3:53	BLACK
59.92 x OR 3:53 - FKM	4237	59.92	3:53	BLACK
60.32 x OR 3:53 - FKM	164	60.32	3:53	BLACK
61.90 x OR 3:53 - FKM	165	61.90	3:53	BLACK
63.09 x OR 3:53 - FKM	4250	63.09	3:53	BLACK
63.50 x OR 3:53 - FKM	167	63.50	3:53	BLACK
65.10 x OR 3:53 - FKM	168	65.10	3:53	BLACK
66.27 x OR 3:53 - FKM	4262	66.27	3:53	BLACK
66.67 x OR 3:53 - FKM	170	66.67	3:53	BLACK
68.26 x OR 3:53 - FKM	171	68.26	3:53	BLACK
69.44 x OR 3:53 - FKM	4275	69.44	3:53	BLACK
69.85 x OR 3:53 - FKM	173	69.85	3:53	BLACK
71.44 x OR 3:53 - FKM	174	71.44	3:53	BLACK
72.62 x OR 3:53 - FKM	4287	72.62	3:53	BLACK
73.02 x OR 3:53 - FKM	176	73.02	3:53	BLACK
74.60 x OR 3:53 - FKM	177	74.60	3:53	BLACK
75.79 x OR 3:53 - FKM	4300	75.79	3:53	BLACK
78.97 x OR 3:53 - FKM	4312	78.97	3:53	BLACK
82.14 x OR 3:53 - FKM	4325	82.14	3:53	BLACK
85.32 x OR 3:53 - FKM	4337	85.32	3:53	BLACK
88.49 x OR 3:53 - FKM	4350	88.49	3:53	BLACK
91.67 x OR 3:53 - FKM	4362	91.67	3:53	BLACK
94.84 x OR 3:53 - FKM	4375	94.84	3:53	BLACK
98.02 x OR 3:53 - FKM	4387	98.02	3:53	BLACK
101.19 x OR 3:53 - FKM	4400	101.19	3:53	BLACK
104.37 x OR 3:53 - FKM	4412	104.37	3:53	BLACK
107.54 x OR 3:53 - FKM	4425	107.54	3:53	BLACK
110.72 x OR 3:53 - FKM	4437	110.72	3:53	BLACK
113.89 x OR 3:53 - FKM	4450	113.89	3:53	BLACK
117.07 x OR 3:53 - FKM	4462	117.07	3:53	BLACK
120.24 x OR 3:53 - FKM	4475	120.24	3:53	BLACK
123.42 x OR 3:53 - FKM	4487	123.42	3:53	BLACK
126.59 x OR 3:53 - FKM	4500	126.59	3:53	BLACK
129.77 x OR 3:53 - FKM	4512	129.77	3:53	BLACK
132.94 x OR 3:53 - FKM	4525	132.94	3:53	BLACK
136.12 x OR 3:53 - FKM	4537	136.12	3:53	BLACK
139.29 x OR 3:53 - FKM	4550	139.29	3:53	BLACK
142.47 x OR 3:53 - FKM	4562	142.47	3:53	BLACK
148.82 x OR 3:53 - FKM	4587	148.82	3:53	BLACK
151.99 x OR 3:53 - FKM	4600	151.99	3:53	BLACK
145.64 x OR 3:53 - FKM	4575	154.64	3:53	BLACK
158.34 x OR 3:53 - FKM	4625	158.34	3:53	BLACK
164.69 x OR 3:53 - FKM	4650	164.69	3:53	BLACK
171.04 x OR 3:53 - FKM	4675	171.04	3:53	BLACK
177.39 x OR 3:53 - FKM	4700	177.39	3:53	BLACK
183.74 x OR 3:53 - FKM	4725	183.74	3:53	BLACK
190.09 x OR 3:53 - FKM	4750	190.09	3:53	BLACK
196.44 x OR 3:53 - FKM	4775	196.44	3:53	BLACK
202.79 x OR 3:53 - FKM	4800	202.79	3:53	BLACK
209.14 x OR 3:53 - FKM	4825	209.14	3:53	BLACK
215.49 x OR 3:53 - FKM	4850	215.49	3:53	BLACK
221.84 x OR 3:53 - FKM	4875	221.84	3:53	BLACK
228.19 x OR 3:53 - FKM	4900	228.19	3:53	BLACK
234.54 x OR 3:53 - FKM	4925	234.54	3:53	BLACK
240.89 x OR 3:53 - FKM	4950	240.89	3:53	BLACK
247.26 x OR 3:53 - FKM	4975	247.26	3:53	BLACK
253.59 x OR 3:53 - FKM	41000	253.59	3:53	BLACK
266.29 x OR 3:53 - FKM	41050	266.29	3:53	BLACK
278.99 x OR 3:53 - FKM	41100	278.99	3:53	BLACK
291.69 x OR 3:53 - FKM	41150	291.69	3:53	BLACK
304.39 x OR 3:53 - FKM	41200	304.39	3:53	BLACK
329.79 x OR 3:53 - FKM	41300	329.79	3:53	BLACK
355.19 x OR 3:53 - FKM	41400	355.19	3:53	BLACK
380.59 x OR 3:53 - FKM	41500	380.59	3:53	BLACK
405.26 x OR 3:53 - FKM	41600	405.26	3:53	BLACK
430.66 x OR 3:53 - FKM	41700	430.66	3:53	BLACK
456.06 x OR 3:53 - FKM	41800	456.06	3:53	BLACK
OR 10:46 x 5.33 - FKM		10:46	5:33	BLACK
OR 12.07 x 5.33 - FKM		12:07	5:33	BLACK
OR 13.64 x 5.33 - FKM		13.64	5:33	BLACK
OR 15:24 x 5.33 - FKM		15:24	5:33	BLACK
OR 16.81 x 5.33 - FKM		16.81	5:33	BLACK
OR 18:42 x 5.33 - FKM		18:42	5:33	BLACK
OR 19.99 x 5.33 - FKM		19.99	5:33	BLACK
OR 21:59 x 5.33 - FKM		21:59	5:33	BLACK
OR 23:16 x 5.33 - FKM		23:16	5:33	BLACK
OR 24.77 x 5.33 - FKM		24.77	5:33	BLACK
OR 26.34 x 5.33 - FKM		26.34	5:33	BLACK
OR 27.94 x 5.33 - FKM		27.94	5:33	BLACK
OR 29.51 x 5.33 - FKM		29.51	5:33	BLACK
OR 31.12 x 5.33 - FKM		31.12	5:33	BLACK
OR 32.69 x 5.33 - FKM		32.69	5:33	BLACK
OR 34.29 x 5.33 - FKM		34.29	5:33	BLACK
OR 37.47 x 5.33 - FKM	6150 143	37.47	5:33	BLACK
OR 40.64 x 5.33 - FKM	6162 145	40.64	5:33	BLACK
OR 43.82 x 5.33 - FKM	6175 148	43.82	5:33	BLACK
OR 46.99 x 5.33 - FKM	6187 151	46.99	5:33	BLACK
OR 50.17 x 5.33 - FKM	6200 154	50.17	5:33	BLACK
OR 53.34 x 5.33 - FKM	6212 157	53.35	5:33	BLACK
OR 56.52 x 5.33 - FKM	6225 160	56.52	5:33	BLACK
OR 59.69 x 5.33 - FKM	6237 163	59.69	5:33	BLACK
OR 62.87 x 5.33 - FKM	6250 166	62.87	5:33	BLACK
OR 66.04 x 5.33 - FKM	6262 169	66.04	5:33	BLACK
OR 69.22 x 5.33 - FKM	6275 172	69.22	5:33	BLACK
OR 72.39 x 5.33 - FKM	6287 175	72.39	5:33	BLACK
OR 74.63 x 5.33 - FKM	178	74.63	5:33	BLACK
OR 75.57 x 5.33 - FKM	6300 179	75.57	5:33	BLACK
OR 78.74 x 5.33 - FKM	6312 180	78.74	5:33	BLACK
OR 79.73 x 5.33 - FKM	181	79.73	5:33	BLACK
OR 81.92 x 5.33 - FKM	6325 182	81.92	5:33	BLACK
OR 85.09 x 5.33 - FKM	6337 183	85.09	5:33	BLACK
OR 88.27 x 5.33 - FKM	6350 184	88.27	5:33	BLACK
OR 89.69 x 5.33 - FKM	185	89.69	5:33	BLACK
OR 91.44 x 5.33 - FKM	6362 186	91.44	5:33	BLACK
OR 94.62 x 5.33 - FKM	6375 187	94.62	5:33	BLACK
OR 97.79 x 5.33 - FKM	6387 188	97.79	5:33	BLACK
OR 100.00 x 5.33 - FKM	189	100.00	5:33	BLACK
OR 100.97 x 5.33 - FKM	6400 190	100.97	5:33	BLACK
OR 104.14 x 5.33 - FKM	6412 191	104.14	5:33	BLACK
OR 107.32 x 5.33 - FKM	6425 192	107.32	5:33	BLACK
OR 109.54 x 5.33 - FKM	193	109.54	5:33	BLACK
OR 110.49 x 5.33 - FKM	6437 194	110.49	5:33	BLACK
OR 113.67 x 5.33 - FKM	6450 195	113.67	5:33	BLACK
OR 116.84 x 5.33 - FKM		116.84	5:33	BLACK
OR 117.48 x 5.33 - FKM	199	117.48	5:33	BLACK
OR 120.01 x 5.33 - FKM		120.01	5:33	BLACK
OR 120.65 x 5.33 - FKM	201	120.65	5:33	BLACK
OR 123.19 x 5.33 - FKM		123.19	5:33	BLACK
OR 123.83 x 5.33 - FKM	203	123.83	5:33	BLACK
OR 126.36 x 5.33 - FKM		126.36	5:33	BLACK
OR 127.00 x 5.33 - FKM	206	127.00	5:33	BLACK
OR 129.54 x 5.33 - FKM		129.54	5:33	BLACK
OR 130.18 x 5.33 - FKM	208	130.18	5:33	BLACK
OR 132.71 x 5.33 - FKM		132.71	5:33	BLACK
OR 133.35 x 5.33 - FKM	210	133.35	5:33	BLACK
OR 135.89 x 5.33 - FKM		135.89	5:33	BLACK
OR 136.53 x 5.33 - FKM	213	136.53	5:33	BLACK
OR 139.06 x 5.33 - FKM		139.06	5:33	BLACK
OR 139.70 x 5.33 - FKM	215	139.70	5:33	BLACK
OR 142.24 x 5.33 - FKM		142.24	5:33	BLACK
OR 142.88 x 5.33 - FKM	217	142.88	5:33	BLACK
OR 145.41 x 5.33 - FKM		145.41	5:33	BLACK
OR 146.05 x 5.33 - FKM	219	146.05	5:33	BLACK
OR 148.59 x 5.33 - FKM		148.59	5:33	BLACK
OR 149.23 x 5.33 - FKM	221	149.23	5:33	BLACK
OR 151.77 x 5.33 - FKM	6600	151.77	5:33	BLACK
OR 158.12 x 5.33 - FKM	6625	158.12	5:33	BLACK
OR 164.47 x 5.33 - FKM	6645	164.47	5:33	BLACK
OR 170.82 x 5.33 - FKM	6670	170.82	5:33	BLACK
OR 177.17 x 5.33 - FKM	6700	177.17	5:33	BLACK
OR 183.52 x 5.33 - FKM	6720	183.52	5:33	BLACK
OR 189.87 x 5.33 - FKM	6745	189.87	5:33	BLACK
OR 196.22 x 5.33 - FKM	6775	196.22	5:33	BLACK
OR 202.57 x 5.33 - FKM	6795	202.57	5:33	BLACK
OR 208.92 x 5.33 - FKM	6820	208.92	5:33	BLACK
OR 215.27 x 5.33 - FKM	6850	215.27	5:33	BLACK
OR 221.62 x 5.33 - FKM	6870	221.62	5:33	BLACK
OR 227.97 x 5.33 - FKM	6895	227.97	5:33	BLACK
OR 234.32 x 5.33 - FKM	6920	234.32	5:33	BLACK
OR 240.67 x 5.33 - FKM	6945	240.67	5:33	BLACK
OR 247.02 x 5.33 - FKM	6975	247.02	5:33	BLACK
OR 253.37 x 5.33 - FKM	6995	253.37	5:33	BLACK
OR 266.07 x 5.33 - FKM	61050	266.07	5:33	BLACK
OR 278.77 x 5.33 - FKM	61100	278.77	5:33	BLACK
OR 291.47 x 5.33 - FKM	61150	291.47	5:33	BLACK
OR 304.17 x 5.33 - FKM	61200	304.17	5:33	BLACK
OR 329.57 x 5.33 - FKM	61300	329.57	5:33	BLACK
OR 354.97 x 5.33 - FKM	61400	354.97	5:33	BLACK
OR 380.37 x 5.33 - FKM	61500	380.37	5:33	BLACK
OR 405.26 x 5.33 - FKM	61600	405.26	5:33	BLACK
OR 430.66 x 5.33 - FKM	61700	430.66	5:33	BLACK
OR 456.06 x 5.33 - FKM	61800	456.06	5:33	BLACK
OR 481.41 x 5.33 - FKM	61900	481.41	5:33	BLACK
OR 506.81 x 5.33 - FKM	62000	506.81	5:33	BLACK
OR 532.21x 5.33 - FKM	62100	532.21	5:33	BLACK
OR 557.61 x 5.33 - FKM	62200	557.61	5:33	BLACK
OR 582.68 x 5.33 - FKM	62300	582.68	5:33	BLACK
OR 608.08 x 5.33 - FKM	62400	608.08	5:33	BLACK
OR 633.48 x 5.33 - FKM	62500	633.48	5:33	BLACK
OR 658.88 x 5.33 - FKM	62600	658.88	5:33	BLACK
OR 113.67 x 6.99 - FKM	8450 196	113.67	6.99	BLACK
OR 114.70 x 6.99 - FKM	197	114.70	6.99	BLACK
OR 116.84 x 6.99 - FKM	8462 198	116.84	6.99	BLACK
OR 120.02 x 6.99 - FKM	8475 200	120.02	6.99	BLACK
OR 123.19 x 6.99 - FKM	8487 202	123.19	6.99	BLACK
OR 124.60 x 6.99 - FKM	204	124.60	6.99	BLACK
OR 126.37 x 6.99 - FKM	8500 205	126.37	6.99	BLACK
OR 129.54 x 6.99 - FKM	8512 207	129.54	6.99	BLACK
OR 132.72 x 6.99 - FKM	8525 209	132.72	6.99	BLACK
OR 134.50 x 6.99 - FKM	211	134.50	6.99	BLACK
OR 135.89 x 6.99 - FKM	8537 212	135.89	6.99	BLACK
OR 139.07 x 6.99 - FKM	8550 214	139.07	6.99	BLACK
OR 142.24 x 6.99 - FKM	8562 216	142.24	6.99	BLACK
OR 148.59 x 6.99 - FKM	8587 220	148.59	6.99	BLACK
OR 151.77 x 6.99 - FKM	8600 222	151.77	6.99	BLACK
OR 145.42 x 6.99 - FKM	8575 218	154.42	6.99	BLACK
OR 155.60 x 6.99 - FKM	223	155.60	6.99	BLACK
OR 158.12 x 6.99 - FKM	8625 224	158.12	6.99	BLACK
OR 159.50 x 6.99 - FKM	225	159.50	6.99	BLACK
OR 161.90 x 6.99 - FKM	226	161.90	6.99	BLACK
OR 164.47 x 6.99 - FKM	8650 227	164.47	6.99	BLACK
OR 166.70 x 6.99 - FKM	228	166.70	6.99	BLACK
OR 168.30 x 6.99 - FKM	229	168.30	6.99	BLACK
OR 170.82 x 6.99 - FKM	8675 230	170.82	6.99	BLACK
OR 174.60 x 6.99 - FKM	231	174.60	6.99	BLACK
OR 177.17 x 6.99 - FKM	8700 232	177.17	6.99	BLACK
OR 181.00 x 6.99 - FKM	233	181.00	6.99	BLACK
OR 183.52 x 6.99 - FKM	8725 234	183.52	6.99	BLACK
OR 187.30 x 6.99 - FKM	235	187.30	6.99	BLACK
OR 189.87 x 6.99 - FKM	8750 236	189.87	6.99	BLACK
OR 193.70 x 6.99 - FKM	237	193.70	6.99	BLACK
OR 196.22 x 6.99 - FKM	8775 238	196.22	6.99	BLACK
OR 200.00 x 6.99 - FKM	239	200.00	6.99	BLACK
OR 202.57 x 6.99 - FKM	8800 240	202.57	6.99	BLACK
OR 208.92 x 6.99 - FKM	8825 241	208.92	6.99	BLACK
OR 215.27 x 6.99 - FKM	8850 242	215.27	6.99	BLACK
OR 221.62 x 6.99 - FKM	8875 243	221.62	6.99	BLACK
OR 227.97 x 6.99 - FKM	8900 244	227.97	6.99	BLACK
OR 234.32 x 6.99 - FKM	8925 245	234.32	6.99	BLACK
OR 240.67 x 6.99 - FKM	8950 246	240.67	6.99	BLACK
OR 247.00 x 6.99 - FKM	8975 247	247.00	6.99	BLACK
OR 253.37 x 6.99 - FKM	81000 248	253.37	6.99	BLACK
OR 259.70 x 6.99 - FKM	81025 249	259.70	6.99	BLACK
OR 266.07 x 6.99 - FKM	81050 250	266.07	6.99	BLACK
OR 272.40 x 6.99 - FKM	81075 251	272.40	6.99	BLACK
OR 278.77 x 6.99 - FKM	81100 252	278.77	6.99	BLACK
OR 285.10 x 6.99 - FKM	81125 253	285.10	6.99	BLACK
OR 291.47 x 6.99 - FKM	81150 254	291.47	6.99	BLACK
OR 297.80 x 6.99 - FKM	81175 255	297.80	6.99	BLACK
OR 304.17 x 6.99 - FKM	81200 256	304.17	6.99	BLACK
OR 380.37 x 6.99 - FKM	81500 262	308.37	6.99	BLACK
OR 316.87 x 6.99 - FKM	81250 257	316.87	6.99	BLACK
OR 329.57 x 6.99 - FKM	81300 258	329.57	6.99	BLACK
OR 342.27 x 6.99 - FKM	81350 259	342.27	6.99	BLACK
OR 354.97 x 6.99 - FKM	81400 260	354.97	6.99	BLACK
OR 367.67 x 6.99 - FKM	81450 261	367.67	6.99	BLACK
OR 393.07 x 6.99 - FKM	81550 263	393.07	6.99	BLACK
OR 405.26 x 6.99 - FKM	81600	405.26	6.99	BLACK
OR 417.96 x 6.99 - FKM	81650	417.96	6.99	BLACK
OR 430.66 x 6.99 - FKM	81700	430.66	6.99	BLACK
OR 443.36 x 6.99 - FKM	81750	443.36	6.99	BLACK
OR 456.06 x 6.99 - FKM	81800	456.06	6.99	BLACK
OR 468.76 x 6.99 - FKM	81850	468.76	6.99	BLACK
OR 481.46 x 6.99 - FKM	81900	481.46	6.99	BLACK
OR 494.16 x 6.99 - FKM	81950	494.16	6.99	BLACK
OR 506.86 x 6.99 - FKM	82000	506.86	6.99	BLACK
OR 532.26 x 6.99 - FKM	82100	532.26	6.99	BLACK
OR 557.66 x 6.99 - FKM	82200	557.66	6.99	BLACK
OR 582.68 x 6.99 - FKM	82300	582.68	6.99	BLACK
OR 608.80 x 6.99 - FKM	82400	608.80	6.99	BLACK
OR 633.48 x 6.99 - FKM	82500	633.48	6.99	BLACK
OR 658.88 x 6.99 - FKM	82600	658.88	6.99	BLACK

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.

© Copyright 2008-2009, All Rights Reserved - Tutti i nomi di prodotti e servizi menzionati nel Sito Web sono depositati delle rispettive societa'. Le informazioni fornite nel presente documento perseguono finalita' di carattere esclusivamente informativo.

Menu Principale

Menu' Esteso

Menu Informativo

Materiali speciali

Cookie

DOWNLOAD CATALOG
