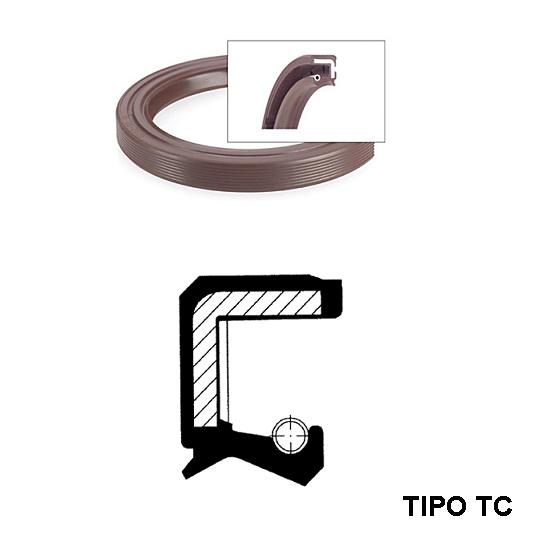

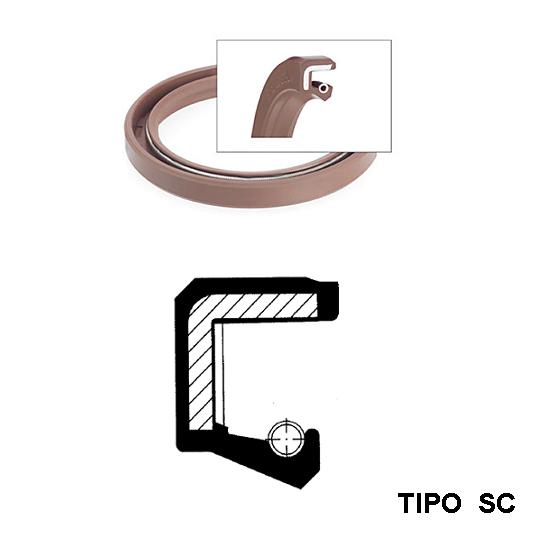

SEALS RUBBER TYPE SC and TC NBR





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reader




DESCRIPTION:

Radial lip seal for shafts and spindles. Includes a rubber lip, a metallic reinforcement ring and a spiral spring energizing. Are available with and without outer lip dustproof and sit in a open groove according to DIN 3760.

ARMOR METAL:

- It 's used to give strength and rigidity to the ring. - Standard is made of "steel according to DIN 1624.

- To prevent rust and chemical attack can be 'require stainless steel version.



SPRING:

-Keeps the radial force exerted by the lip seal around the shaft surface.

-Standard is produced in "HARMONIC STEEL FOR SPRINGS C72.



ELASTOMER:

- Nitrile rubber NBR (copolymer of butadiene and acrylonitrile).

- Used for most applications required for conventional fluids. - Temperature range: -40 ° C +120 ° C in oil / +90 ° C in water.

- Tensile strength: up to 15 MPa.



- Standard Color: BLACK.



Advantages:

-Good resistance to oils and greases.

-Good resistance to water and radiator fluid.

-High resistance to tearing.



Limitations:

-Poor resistance to ozone and weathering.

-Not resistant to automotive brake fluid.

-Poor resistance to chlorinated hydrocarbons.

-Poor resistance to aromatic solvents.



NOTES:

You can perform SEALS on design and material specifications of the customer.



All measurements are in millimeters.




CodeInside Ø Inside ØHeightMaterialTypePack pc.
AT / SC / NBR 4x12x64126NBRSC100
AT / SC / NBR 4x16x44164NBRSC100
AT / SC / NBR 5x15x65156NBRSC100
AT / SC / NBR 5x16x65166NBRSC100
AT / SC / NBR 6x12x4.56124.5NBRSC100
AT / SC / NBR 6x14x66146NBRSC100
AT / SC / NBR 6x15x46154NBRSC100
AT / SC / NBR 6x15x46154NBRSC100
AT / SC / NBR 6x15x76157NBRSC100
AT / SC / NBR 6x16x76167NBRSC100
AT / SC / NBR 6x19x66196NBRSC100
AT / CT / NBR 6x19x76197NBRTC100
AT / CT / NBR 6x22x76227NBRTC100
AT / SC / NBR 6x22x76227NBRSC100
AT / SC / NBR 7x15x57155NBRSC100
AT / SC / NBR 7x16x77167NBRSC100
AT / CT / NBR 7x18x87188NBRTC100
AT / CT / NBR 7x22x77227NBRTC100
AT / SC / NBR 8x16x58165NBRSC100
AT / SC / NBR 8x16x68166NBRSC100
AT / CT / NBR 8x16x78167NBRTC100
AT / SC / NBR 8x16x78167NBRSC100
AT / SC / NBR 8x18x58185NBRSC100
AT / CT / NBR 8x18x68186NBRTC100
AT / SC / NBR 8x18x68186NBRSC100
AT / SC / NBR 8x19x48194NBRSC100
AT / CT / NBR 8x22x78227NBRTC100
AT / SC / NBR 8x22x78227NBRSC100
AT / SC / NBR 8x24x78247NBRSC100
AT / SC / NBR 8x25x78257NBRSC100
AT / CT / NBR 8x25x78257NBRTC100
AT / SC / NBR 8x26x68266NBRSC100
AT / CT / NBR 9x18x89188NBRTC100
AT / CT / NBR 9x19x79197NBRTC100
AT / SC / NBR 9x22x79227NBRSC100
AT / CT / NBR 9x22x79227NBRTC100
AT / CT / NBR 9x24x79247NBRTC100
AT / SC / NBR 9x24x79247NBRSC100
AT / SC / NBR 9x26x79267NBRSC100
AT / CT / NBR 9x30x79307NBRTC100
AT / SC / NBR 10x16x410164NBRSC100
AT / CT / NBR 10x18x410184NBRTC100
AT / SC / NBR 10x19x410194NBRSC100
AT / SC / NBR 10x19x710197NBRSC100
AT / CT / NBR 10x19x710197NBRTC100
AT / SC / NBR 10x20x410204NBRSC100
AT / SC / NBR 10x20x610206NBRSC100
AT / CT / NBR 10x22x610226NBRTC100
AT / SC / NBR 10x22x610226NBRSC100
AT / SC / NBR 10x22x710227NBRSC100
AT / CT / NBR 10x22x710227NBRTC100
AT / CT / NBR 10x24x710247NBRTC100
AT / SC / NBR 10x24x710247NBRSC100
AT / SC / NBR 10x26x5.510265.5NBRSC100
AT / CT / NBR 10x26x710267NBRTC100
AT / SC / NBR 10x26x710267NBRSC100
AT / CT / NBR 10x30x710307NBRTC100
AT / SC / NBR 10x30x710307NBRSC100
AT / CT / NBR 11x17x411174NBRTC100
AT / SC / NBR 11x18x411184NBRSC100
AT / SC / NBR 11x22x711227NBRSC100
AT / CT / NBR 11x22x711227NBRTC100
AT / SC / NBR 11x26x711267NBRSC100
AT / CT / NBR 11x30x711307NBRTC100
AT / SC / NBR 12x19x512195NBRSC100
AT / CT / NBR 12x20x512205NBRTC100
AT / SC / NBR 12x20x512205NBRSC100
AT / SC / NBR 12x22x412224NBRSC100
AT / SC / NBR 12x22x512225NBRSC100
AT / CT / NBR 12x22x512225NBRTC100
AT / SC / NBR 12x22x612226NBRSC100
AT / CT / NBR 12x22x612226NBRTC100
AT / CT / NBR 12x22x6.512226.5NBRTC100
AT / CT / NBR 12x22x712227NBRTC100
AT / SC / NBR 12x22x712227NBRSC100
AT / SC / NBR 12x24x4.512244.5NBRSC100
AT / SC / NBR 12x24x512245NBRSC100
AT / SC / NBR 12x24x612246NBRSC100
AT / SC / NBR 12x24x712247NBRSC100
AT / CT / NBR 12x24x712247NBRTC100
AT / SC / NBR 12x25x4.512254.5NBRSC100
AT / SC / NBR 12x25x712257NBRSC100
AT / CT / NBR 12x25x712257NBRTC100
AT / SC / NBR 12x26x612266NBRSC100
AT / CT / NBR 12x26x712267NBRTC100
AT / CT / NBR 12x26x812268NBRTC100
AT / SC / NBR 12x26x812268NBRSC100
AT / CT / NBR 12x28x512285NBRTC100
AT / SC / NBR 12x28x712287NBRSC100
AT / CT / NBR 12x28x712287NBRTC100
AT / SC / NBR 12x30x712307NBRSC100
AT / CT / NBR 12x30x712307NBRTC100
AT / CT / NBR 12x32x712327NBRTC100
AT / SC / NBR 12x32x712327NBRSC100
AT / SC / NBR 12x35x712357NBRSC100
AT / CT / NBR 12x37x712377NBRTC100
AT / CT / NBR 12.70x25.40x6.3512.7025.406:35NBRTC100
AT / CT / NBR 12.70x31.75x7.9012.7031.757.90NBRTC100
AT / SC / NBR 13x22x513225NBRSC100
AT / CT / NBR 13x22x713227NBRTC100
AT / SC / NBR 13x30x713307NBRSC100
AT / SC / NBR 13x30x813308NBRSC100
AT / SC / NBR 13x35x10133510NBRSC100
AT / SC / NBR 14x22x414224NBRSC100
AT / CT / NBR 14x22x514225NBRTC100
AT / SC / NBR 14x22x614226NBRSC100
AT / CT / NBR 14x22x714227NBRTC100
AT / CT / NBR 14x24x414244NBRTC100
AT / CT / NBR 14x24x514245NBRTC100
AT / CT / NBR 14x24x614246NBRTC100
AT / SC / NBR 14x24x614246NBRSC100
AT / SC / NBR 14x24x714247NBRSC100
AT / CT / NBR 14x24x714247NBRTC100
AT / SC / NBR 14x25x514255NBRSC100
AT / CT / NBR 14x25x714257NBRTC100
AT / CT / NBR 14x28x714287NBRTC100
AT / SC / NBR 14x28x714287NBRSC100
AT / CT / NBR 14x30x714307NBRTC100
AT / SC / NBR 14x30x714307NBRSC100
AT / CT / NBR 14x35x714357NBRTC100
AT / SC / NBR 14x35x714357NBRSC100
AT / SC / NBR 15x24x415244NBRSC100
AT / CT / NBR 15x24x515245NBRTC100
AT / SC / NBR 15x24x515245NBRSC100
AT / CT / NBR 15x24x615246NBRTC100
AT / CT / NBR 15x24x715247NBRTC100
AT / SC / NBR 15x24x715247NBRSC100
AT / SC / NBR 15x25x515255NBRSC100
AT / CT / NBR 15x25x515255NBRTC100
AT / SC / NBR 15x25x715257NBRSC100
AT / SC / NBR 15x26x715267NBRSC100
AT / CT / NBR 15x26x715267NBRTC100
AT / CT / NBR 15x27x715277NBRTC100
AT / SC / NBR 15x27x715277NBRSC100
AT / SC / NBR 15x28x415284NBRSC100
AT / SC / NBR 15x28x515285NBRSC100
AT / CT / NBR 15x28x615286NBRTC100
AT / SC / NBR 15x28x615286NBRSC100
AT / CT / NBR 15x28x715287NBRTC100
AT / SC / NBR 15x28x715287NBRSC100
AT / SC / NBR 15x30x4.515304.5NBRSC100
AT / SC / NBR 15x30x515305NBRSC100
AT / SC / NBR 15x30x715307NBRSC100
AT / CT / NBR 15x30x715307NBRTC100
AT / CT / NBR 15x30x815308NBRTC100
AT / CT / NBR 15x30x10153010NBRTC100
AT / CT / NBR 15x32x515325NBRTC100
AT / CT / NBR 15x32x715327NBRTC100
AT / CS / NBR 15x32x715327NBRSC100
AT / CT / NBR 15x35x615356NBRTC100
AT / SC / NBR 15x35x715357NBRSC100
AT / CT / NBR 15x35x715357NBRTC100
AT / CT / NBR 15x35x10153510NBRTC100
AT / SC / NBR 15x35x10153510NBRSC100
AT / SC / NBR 15x40x10154010NBRSC100
AT / CT / NBR 15x42x715427NBRTC20
AT / SC / NBR 15x42x715427NBRSC20
AT / SC / NBR 15x42x715427NBRSC20
AT/SC/NBR16x22x416224NBRSC100
AT / SC / NBR 16x24x416244NBRSC100
AT / SC / NBR 16x24x516245NBRSC100
AT / SC / NBR 16x24x716247NBRSC100
AT / CT / NBR 16x25x516255NBRTC100
AT / CT / NBR 16x26x516265NBRTC100
AT / SC / NBR 16x26x716267NBRSC100
AT / CT / NBR 16x28x716287NBRTC100
AT / SC / NBR 16x28x716287NBRSC100
AT / SC / NBR 16x30x516305NBRSC100
AT / SC / NBR 16x30x716307NBRSC100
AT / CT / NBR 16x30x716307NBRTC100
AT / SC / NBR 16x32x716327NBRSC100
AT / CT / NBR 16x32x716327NBRTC100
AT / SC / NBR 16x35x716357NBRSC100
AT / CT / NBR 16x35x716357NBRTC100
AT / SC / NBR 16x35x816358NBRSC100
AT / SC / NBR 16x40x10164010NBRSC100
AT / SC / NBR 17x22x517225NBRSC100
AT / CT / NBR 17x25x417254NBRTC100
AT / SC / NBR 17x25x417254NBRSC100
AT / SC / NBR 17x26x617266NBRSC100
AT / CT / NBR 17x27x717277NBRTC100
AT / CT / NBR 17x28x517285NBRTC100
AT / SC / NBR 17x28x517285NBRSC100
AT / SC / NBR 17x28x617286NBRSC100
AT / SC / NBR 17x28x717287NBRSC100
AT / CT / NBR 17x28x717287NBRTC100
AT / SC / NBR 17x28x817288NBRSC100
AT / CT / NBR 17x30x517305NBRTC100
AT / SC / NBR 17x30x517305NBRSC100
AT / SC / NBR 17x30x717307NBRSC100
AT / CT / NBR 17x30x717307NBRTC100
AT / SC / NBR 17x32x517325NBRSC100
AT / CT / NBR 17x32x517325NBRTC100
AT / CT / NBR 17x32x717327NBRTC100
AT / SC / NBR 17x32x717327NBRSC100
AT / CT / NBR 17x32x817328NBRTC100
AT / SC / NBR 17x35x517355NBRSC100
AT / CT / NBR 17x35x717357NBRTC100
AT / SC / NBR 17x35x717357NBRSC100
AT / SC / NBR 17x35x817358NBRSC100
AT / CT / NBR 17x35x817358NBRTC100
AT / SC / NBR 17x37x417374NBRSC100
AT / SC / NBR 17x40x617406NBRSC100
AT / SC / NBR 17x40x717407NBRSC100
AT / CT / NBR 17x40x717407NBRTC100
AT / CT / NBR 17x40x817408NBRTC100
AT / SC / NBR 17x40x8.517408.5NBRSC100
AT / CT / NBR 17x40x10174010NBRTC100
AT / SC / NBR 17x47x717477NBRSC20
AT / CT / NBR 17x47x717477NBRTC20
AT / CT / NBR 17x47x817478NBRTC20
AT / CT / NBR 17x47x10174710NBRTC20
AT / CT / NBR 17.40x28.50x6.3017:4028.506.30NBRTC100
AT / SC / NBR 18x26x618266NBRSC100
AT / SC / NBR 18x28x618286NBRSC100
AT / CT / NBR 18x28x718287NBRTC100
AT / SC / NBR 18x28x718287NBRSC100
AT / SC / NBR 18x30x518305NBRSC100
AT / SC / NBR 18x30x718307NBRSC100
AT / CT / NBR 18x30x718307NBRTC100
AT / SC / NBR 18x32x718327NBRSC100
AT / CT / NBR 18x32x718327NBRTC100
AT / CT / NBR 18x32x818328NBRTC100
AT / CT / NBR 18x35x718357NBRTC100
AT / SC / NBR 18x35x718357NBRSC100
AT / SC / NBR 18x35x10183510NBRSC100
AT / SC / NBR 18x40x718407NBRSC100
AT / CT / NBR 18x40x718407NBRTC100
AT / CT / NBR 19x27x519275NBRTC100
AT / SC / NBR 19x27x619276NBRSC100
AT / SC / NBR 19x32x719327NBRSC100
AT / CT / NBR 19x32x719327NBRTC100
AT / CT / NBR 19x35x719357NBRTC100
AT / SC / NBR 19x47x10194710NBRSC20
AT / CT / NBR 20x26x420264NBRTC100
AT / SC / NBR 20x30x420304NBRSC100
AT / CT / NBR 20x30x4.520304.5NBRTC100
AT / CT / NBR 20x30x520305NBRTC100
AT / SC / NBR 20x30x520305NBRSC100
AT / SC / NBR 20x30x720307NBRSC100
AT / CT / NBR 20x30x720307NBRTC100
AT / SC / NBR 20x32x520325NBRSC100
AT / SC / NBR 20x32x720327NBRSC100
AT / CT / NBR 20x32x720327NBRTC100
AT / SC / NBR 20x35x5.520355.5NBRSC100
AT / SC / NBR 20x35x620356NBRSC100
AT / CT / NBR 20x35x620356NBRTC100
AT / CT / NBR 20x35x720357NBRTC100
AT / SC / NBR 20x35x720357NBRSC100
AT / CT / NBR 20x35x820358NBRTC100
AT / CT / NBR 20x35x10203510NBRTC100
AT / SC / NBR 20x35x10203510NBRSC100
AT / SC / NBR 20x37x720377NBRSC100
AT / CT / NBR 20x37x720377NBRTC100
AT / CT / NBR 20x38x720387NBRTC100
AT / SC / NBR 20x38x720387NBRSC100
AT / CT / NBR 20x38x820388NBRTC100
AT / SC / NBR 20x38x820388NBRSC100
AT / SC / NBR 20x40x720407NBRSC100
AT / CT / NBR 20x40x720407NBRTC100
AT / CT / NBR 20x40x10204010NBRTC100
AT / SC / NBR 20x40x10204010NBRSC100
AT / CT / NBR 20x42x620426NBRTC20
AT / CT / NBR 20x42x720427NBRTC20
AT / SC / NBR 20x42x720427NBRSC20
AT / CT / NBR 20x42x10204210NBRTC20
AT / SC / NBR 20x42x10204210NBRSC20
AT / CT / NBR 20x45x720457NBRTC20
AT / CT / NBR 20x47x720477NBRTC20
AT / SC / NBR 20x47x720477NBRSC20
AT / CT / NBR 20x47x820478NBRTC20
AT / SC / NBR 20x47x10204710NBRSC20
AT / CT / NBR 20x48x720487NBRTC20
AT / SC / NBR 20x52x620526NBRSC20
AT / SC / NBR 20x52x720527NBRSC20
AT / CT / NBR 20x52x820528NBRTC20
AT / CT / NBR 20x52x10205210NBRTC20
AT / SC / NBR 20x52x10205210NBRSC20
AT / SC / NBR 20x72x10207210NBRSC20
AT / CT / NBR 21x40x721407NBRTC100
AT / SC / NBR 22x32x522325NBRSC20
AT / SC / NBR 22x32x5.522325.5NBRSC20
AT / SC / NBR 22x32x722327NBRSC20
AT / CT / NBR 22x32x722327NBRTC100
AT / SC / NBR 22x35x622356NBRSC100
AT / CT / NBR 22x35x722357NBRTC100
AT / SC / NBR 22x35x722357NBRSC20
AT / SC / NBR 22x35x822358NBRSC20
AT / SC / NBR 22x36x722367NBRSC20
AT / CT / NBR 22x36x722367NBRTC100
AT / SC / NBR 22.23x38.1x6.42238.16.4NBRSC20
AT / SC / NBR 22x40x722407NBRSC100
AT / CT / NBR 22x40x722407NBRTC100
AT / CT / NBR 22x42x722427NBRTC20
AT / SC / NBR 22x42x722427NBRSC20
AT / SC / NBR 22x45x822458NBRSC20
AT / CT / NBR 22x45x822458NBRTC20
AT / CT / NBR 22x47x722477NBRTC20
AT / SC / NBR 22x47x722477NBRSC20
AT / SC / NBR 22x47x10224710NBRSC20
AT / SC / NBR 23x40x823408NBRSC100
AT / SC / NBR 23x42x10234210NBRSC20
AT / CT / NBR 24x32x424324NBRTC100
AT / CT / NBR 24x32x724327NBRTC100
AT / CT / NBR 24x35x624356NBRTC100
AT / CT / NBR 24x35x724357NBRTC100
AT / SC / NBR 24x35x724357NBRSC100
AT / CT / NBR 24x36x724367NBRTC100
AT / SC / NBR 24x36x724367NBRSC100
AT / SC / NBR 24x37x724377NBRSC100
AT / CT / NBR 24x37x724377NBRTC100
AT / CT / NBR 24x40x724407NBRTC100
AT / SC / NBR 24x40x724407NBRSC100
AT / CT / NBR 24x40x824408NBRTC100
AT / CT / NBR 24x42x824428NBRTC20
AT / CT / NBR 24x47x724477NBRTC20
AT / SC / NBR 24x47x724477NBRSC20
AT / SC / NBR 24x47x10244710NBRSC100
AT / CT / NBR 24x49x12244912NBRTC100
AT / SC / NBR 24x52x10245210NBRSC100
AT / CT / NBR 25x32x625326NBRTC100
AT / SC / NBR 25x35x525355NBRSC100
AT / SC / NBR 25x35x725357NBRSC100
AT / CT / NBR 25x35x725357NBRTC100
AT / CT / NBR 25x35x925359NBRTC100
AT / SC / NBR 25x37x525375NBRSC100
AT / SC / NBR 25x37x725377NBRSC100
AT / CT / NBR 25x37x725377NBRTC100
AT / CT / NBR 25x38x725387NBRTC100
AT / SC / NBR 25x38x725387NBRSC100
AT / CT / NBR 25x38x825388NBRTC100
AT / SC / NBR 25x40x525405NBRSC100
AT / SC / NBR 25x40x725407NBRSC100
AT / CT / NBR 25x40x725407NBRTC100
AT / CT / NBR 25x40x825408NBRTC100
AT / SC / NBR 25x40x825408NBRSC100
AT / SC / NBR 25x40x10254010NBRSC100
AT / SC / NBR 25x42x625426NBRSC20
AT / SC / NBR 25x42x725427NBRSC20
AT / CT / NBR 25x42x725427NBRTC20
AT / SC / NBR 25x42x8.525428.5NBRSC20
AT / SC / NBR 25x42x10254210NBRSC20
AT / CT / NBR 25x42x10254210NBRTC20
AT / CT / NBR 25x42x10254210NBRTC20
AT / CT / NBR 25x45x725457NBRTC20
AT / CT / NBR 25x45x10254510NBRTC20
AT / SC / NBR 25x45x10254510NBRSC20
AT / CT / NBR 25x45x11254511NBRTC20
AT / CT / NBR 25x46x725467NBRTC20
AT / SC / NBR 25x46x725467NBRSC20
AT / SC / NBR 25x47x525475NBRSC20
AT / SC / NBR 25x47x725477NBRSC20
AT / CT / NBR 25x47x725477NBRTC20
AT / CT / NBR 25x47x825478NBRTC20
AT / SC / NBR 25x47x825478NBRSC20
AT / SC / NBR 25x47x10254710NBRSC20
AT / CT / NBR 25x47x10254710NBRTC20
AT / CT / NBR 25x50x10255010NBRTC20
AT / SC / NBR 25x50x10255010NBRSC20
AT / CT / NBR 25x52x525525NBRTC20
AT / CT / NBR 25x52x725527NBRTC20
AT / SC / NBR 25x52x725527NBRSC20
AT / SC / NBR 25x52x825528NBRSC20
AT / CT / NBR 25x52x825528NBRTC20
AT / CT / NBR 25x52x10255210NBRTC20
AT / SC / NBR 25x52x10255210NBRSC20
AT / CT / NBR 25x55x10255510NBRTC20
AT / SC / NBR 25x62x625626NBRSC20
AT / CT / NBR 25x62x725627NBRTC20
AT / CT / NBR 25x62x825628NBRTC20
AT / CT / NBR 25x62x10256210NBRTC20
AT / SC / NBR 25x62x10256210NBRSC20
AT / CT / NBR 25x80x10258010NBRTC20
AT / CT / NBR 25.40x44.50x4.8025.4044.504.80NBRTC20
AT / CT / NBR 25.40x50.80x12.7025.4050.8012.70NBRTC20
AT / CT / NBR 25.70x35.00x7 / 925.7035.007NBRTC100
AT / SC / NBR 26x35x726357NBRSC100
AT / CT / NBR 26x35x726357NBRTC100
AT / SC / NBR 26x36x726367NBRSC100
AT / CT / NBR 26x36x726367NBRTC100
AT / CT / NBR 26x37x726377NBRTC100
AT / SC / NBR 26x37x726377NBRSC100
AT / CT / NBR 26x37x826378NBRTC100
AT / CT / NBR 26x42x726427NBRTC20
AT / SC / NBR 26x42x726427NBRSC20
AT / SC / NBR 26x47x726477NBRSC20
AT / CT / NBR 26x48x826488NBRTC20
AT / SC / NBR 26x52x726527NBRSC20
AT / SC / NBR 26x52x826528NBRSC20
AT / CT / NBR 26x52x10265210NBRTC20
AT / CT / NBR 27x36x627366NBRTC100
AT / SC / NBR 27x37x727377NBRSC100
AT / CT / NBR 27x40x727407NBRTC100
AT / SC / NBR 27x42x10274210NBRSC20
AT / SC / NBR 27x47x627476NBRSC20
AT / CT / NBR 27x47x727477NBRTC20
AT / CT / NBR 28x38x728387NBRTC100
AT / SC / NBR 28x38x728387NBRSC100
AT / CT / NBR 28x38x828388NBRTC100
AT / CT / NBR 28x40x728407NBRTC100
AT / SC / NBR 28x40x728407NBRSC100
AT / SC / NBR 28x42x728427NBRSC20
AT / CT / NBR 28x42x728427NBRTC20
AT / CT / NBR 28x42x10284210NBRTC20
AT / SC / NBR 28x42x10284210NBRSC20
AT / CT / NBR 28x44x728447NBRTC20
AT / SC / NBR 28x45x828458NBRSC20
AT / SC / NBR 28x47x728477NBRSC20
AT / CT / NBR 28x47x728477NBRTC20
AT / SC / NBR 28x47x10284710NBRSC20
AT / SC / NBR 28x50x10285010NBRSC20
AT / CT / NBR 28x50x10285010NBRTC20
AT / SC / NBR 28x52x528525NBRSC20
AT / SC / NBR 28x52x728527NBRSC20
AT / CT / NBR 28x52x728527NBRTC20
AT / CT / NBR 28x52x10285210NBRTC20
AT / SC / NBR 28x52x10285210NBRSC20
AT / CT / NBR 28x56x628566NBRTC20
AT / CT / NBR 28x58x628586NBRTC20
AT / SC / NBR 29x41x529415NBRSC20
AT / CT / NBR 30x40x530405NBRTC100
AT / SC / NBR 30x40x530405NBRSC100
AT / CT / NBR 30x40x730407NBRTC100
AT / SC / NBR 30x40x730407NBRSC100
AT / SC / NBR 30x42x730427NBRSC20
AT / CT / NBR 30x42x730427NBRTC20
AT / CT / NBR 30x42x830428NBRTC20
AT / CT / NBR 30x43x830438NBRTC20
AT / SC / NBR 30x43x830438NBRSC20
AT / SC / NBR 30x44x10304410NBRSC20
AT / CT / NBR 30x45x730457NBRTC20
AT / CT / NBR 30x45x830458NBRTC20
AT / SC / NBR 30x45x830458NBRSC20
AT / SC / NBR 30x47x630476NBRSC20
AT / SC / NBR 30x47x730477NBRSC20
AT / CT / NBR 30x47x730477NBRTC20
AT / CT / NBR 30x47x830478NBRTC20
AT / CT / NBR 30x47x10304710NBRTC20
AT / SC / NBR 30x47x10304710NBRSC20
AT / SC / NBR 30x48x830488NBRSC20
AT / SC / NBR 30x50x530505NBRSC20
AT / SC / NBR 30x50x730507NBRSC20
AT / CT / NBR 30x50x730507NBRTC20
AT / CT / NBR 30x50x830508NBRTC20
AT / SC / NBR 30x50x830508NBRSC20
AT / SC / NBR 30x50x10305010NBRSC20
AT / CT / NBR 30x50x10305010NBRTC20
AT / SC / NBR 30x52x630526NBRSC20
AT / SC / NBR 30x52x730527NBRSC20
AT / CT / NBR 30x52x730527NBRTC20
AT / CT / NBR 30x52x830528NBRTC20
AT / CT / NBR 30x52x10305210NBRTC20
AT / SC / NBR 30x52x10305210NBRSC20
AT / SC / NBR 30x52x11305211NBRSC20
AT / SC / NBR 30x55x730557NBRSC20
AT / CT / NBR 30x55x730557NBRTC20
AT / CT / NBR 30x55x10305510NBRTC20
AT / SC / NBR 30x55x10305510NBRSC20
AT / SC / NBR 30x56x10305610NBRSC20
AT / CT / NBR 30x56x10305610NBRTC20
AT / CT / NBR 30x60x730607NBRTC20
AT / SC / NBR 30x60x10306010NBRSC20
AT / CT / NBR 30x62x3.530623.5NBRTC20
AT / CT / NBR 30x62x730627NBRTC20
AT / SC / NBR 30x62x730627NBRSC20
AT / CT / NBR 30x62x830628NBRTC20
AT / CT / NBR 30x62x10306210NBRTC20
AT / SC / NBR 30x62x10306210NBRSC20
AT / SC / NBR 30x72x630726NBRSC20
AT / SC / NBR 30x72x10307210NBRSC20
AT / CT / NBR 30x72x10307210NBRTC20
AT / SC / NBR 31x47x731477NBRSC20
AT / CT / NBR 31x51x7.831517.8NBRTC20
AT / CT / NBR 31x52x731527NBRTC20
AT / SC / NBR 32x40x732407NBRSC20
AT / SC / NBR 32x42x732427NBRSC20
AT / CT / NBR 32x42x732427NBRTC20
AT / CT / NBR 32x45x732457NBRTC20
AT / SC / NBR 32x45x732457NBRSC20
AT / SC / NBR 32x47x732477NBRSC20
AT / CT / NBR 32x47x732477NBRTC20
AT / CT / NBR 32x47x10324710NBRTC20
AT / CT / NBR 32x48x732487NBRTC20
AT / CT / NBR 32x50x732507NBRTC20
AT / SC / NBR 32x50x832508NBRSC20
AT / SC / NBR 32x50x10325010NBRSC20
AT / SC / NBR 32x52x532525NBRSC20
AT / SC / NBR 32x52x732527NBRSC20
AT / CT / NBR 32x52x732527NBRTC20
AT / CT / NBR 32x52x10325210NBRTC20
AT / SC / NBR 32x52x10325210NBRSC20
AT / CT / NBR 32x56x10325610NBRTC20
AT / CT / NBR 32x58x10325810NBRTC20
AT / CT / NBR 33x50x633506NBRTC20
AT / CT / NBR 33x50x10335010NBRTC20
AT / SC / NBR 33x52x633526NBRSC20
AT / SC / NBR 34x44x434444NBRSC20
AT / SC / NBR 34x46x10344610NBRSC20
AT / SC / NBR 34x50x10345010NBRSC20
AT / CT / NBR 34x52x834528NBRTC20
AT / SC / NBR 34x52x834528NBRSC20
AT / SC / NBR 34x52x10345210NBRSC20
AT / SC / NBR 34x62x10346210NBRSC20
AT / SC / NBR 35x44x435444NBRSC20
AT / SC / NBR 35x45x535455NBRSC20
AT / SC / NBR 35x45x735457NBRSC20
AT / CT / NBR 35x45x735457NBRTC20
AT / SC / NBR 35x45x10354510NBRSC20
AT / SC / NBR 35x47x4.535474.5NBRSC20
AT / CT / NBR 35x47x735477NBRTC20
AT / SC / NBR 35x47x735477NBRSC20
AT / CT / NBR 35x47x10354710NBRTC20
AT / CT / NBR 35x48x935489NBRTC20
AT / CT / NBR 35x50x735507NBRTC20
AT / SC / NBR 35x50x735507NBRSC20
AT / SC / NBR 35x50x835508NBRSC20
AT / CT / NBR 35x50x835508NBRTC20
AT / CT / NBR 35x50x10355010NBRTC20
AT / SC / NBR 35x50x10355010NBRSC20
AT / CT / NBR 35x52x635526NBRTC20
AT / CT / NBR 35x52x735527NBRTC20
AT / SC / NBR 35x52x735527NBRSC20
AT / SC / NBR 35x52x835528NBRSC20
AT / CT / NBR 35x52x835528NBRTC20
AT / CT / NBR 35x52x10355210NBRTC20
AT / SC / NBR 35x52x10355210NBRSC20
AT / CT / NBR 35x52x12355212NBRTC20
AT / CT / NBR 35x55x835558NBRTC20
AT / SC / NBR 32x55x835558NBRSC20
AT / CT / NBR 35x55x935559NBRTC20
AT / CT / NBR 35x55x10355510NBRTC20
AT / SC / NBR 35x55x10355510NBRSC20
AT / SC / NBR 35x56x835568NBRSC20
AT / SC / NBR 35x56x10355610NBRSC20
AT / CT / NBR 35x56x10355610NBRTC20
AT / SC / NBR 35x56x12355612NBRSC20
AT / CT / NBR 35x58x10355810NBRTC20
AT / CT / NBR 35x60x10356010NBRTC20
AT / SC / NBR 35x60x10356010NBRSC20
AT / SC / NBR 35x62x735627NBRSC20
AT / CT / NBR 35x62x735627NBRTC20
AT / CT / NBR 35x62x835628NBRTC20
AT / CT / NBR 35x62x10356210NBRTC20
AT / SC / NBR 35x62x10356210NBRSC20
AT / SC / NBR 35x65x10356510NBRSC20
AT / CT / NBR 35x65x10356510NBRTC20
AT / SC / NBR 35x67x735677NBRSC20
AT / SC / NBR 35x68x835688NBRSC20
AT / CT / NBR 35x68x10356810NBRTC20
AT / CT / NBR 35x72x735727NBRTC20
AT / CT / NBR 35x72x10357210NBRTC20
AT / SC / NBR 35x72x10357210NBRSC20
AT / CT / NBR 35x72x12357212NBRTC20
AT / CT / NBR 35x80x10358010NBRTC20
AT / SC / NBR 35x80x10358010NBRSC20
AT / SC / NBR 35x80x12358012NBRSC20
AT / CT / NBR 35x80x12358012NBRTC20
AT / SC / NBR 35x82x635826NBRSC20
AT / SC / NBR 36x47x736477NBRSC20
AT / CT / NBR 36x47x736477NBRTC20
AT / CT / NBR 36x50x736507NBRTC20
AT / SC / NBR 36x50x736507NBRSC20
AT / SC / NBR 36x50x10365010NBRSC20
AT / SC / NBR 36x52x736527NBRSC20
AT / SC / NBR 36x54x7.536547.5NBRSC20
AT / SC / NBR 36x58x10365810NBRSC20
AT / SC / NBR 36x62x736627NBRSC20
AT / SC / NBR 36x68x10366810NBRSC20
AT / SC / NBR 37x52x737527NBRSC20
AT / SC / NBR 37x62x837628NBRSC20
AT / SC / NBR 38x50x738507NBRSC20
AT / CT / NBR 38x50x738507NBRTC20
AT / CT / NBR 38x52x738527NBRTC20
AT / SC / NBR 38x52x738527NBRSC20
AT / SC / NBR 38x52x838528NBRSC20
AT / CT / NBR 38x52x838528NBRTC20
AT / SC / NBR 38x52x10385210NBRSC20
AT / SC / NBR 38x54x10385410NBRSC20
AT / CT / NBR 38x54x10385410NBRTC20
AT / CT / NBR 38x55x738557NBRTC20
AT / SC / NBR 38x55x738557NBRSC20
AT / CT / NBR 38x55x10385510NBRTC20
AT / SC / NBR 38x55x10385510NBRSC20
AT / CT / NBR 38x55x11385511NBRTC20
AT / SC / NBR 38x62x738627NBRSC20
AT / CT / NBR 38x62x738627NBRTC20
AT / SC / NBR 38x62x838628NBRSC20
AT / SC / NBR 38x62x10386210NBRSC20
AT / SC / NBR 38x72x10387210NBRSC20
AT / CT / NBR 38x72x10387210NBRTC20
AT / SC / NBR 38x74x10387410NBRSC20
AT / SC / NBR 40x49.6x7.34049.67.3NBRSC20
AT / CT / NBR 40x50x540505NBRTC20
AT / SC / NBR 40x50x540505NBRSC20
AT / CT / NBR 40x50x740507NBRTC20
AT / CT / NBR 40x50x840508NBRTC20
AT / CT / NBR 40x52x740527NBRTC20
AT / SC / NBR 40x52x740527NBRSC20
AT / CT / NBR 40x52x840528NBRTC20
AT / CT / NBR 40x52x10405210NBRTC20
AT / CT / NBR 40x55x740557NBRTC20
AT / SC / NBR 40x55x740557NBRSC20
AT / SC / NBR 40x55x840558NBRSC20
AT / CT / NBR 40x55x840558NBRTC20
AT / SC / NBR 40x55x10405510NBRSC20
AT / CT / NBR 40x56x740567NBRTC20
AT / CT / NBR 40x56x840568NBRTC20
AT / SC / NBR 40x56x840568NBRSC20
AT / SC / NBR 40x56x12405612NBRSC20
AT / SC / NBR 40x58x10405810NBRSC20
AT / CT / NBR 40x58x10405810NBRTC20
AT / SC / NBR 40x58x12405812NBRSC20
AT / SC / NBR 40x60x740607NBRSC20
AT / CT / NBR 40x60x740607NBRTC20
AT / CT / NBR 40x60x10406010NBRTC20
AT / SC / NBR 40x60x10406010NBRSC20
AT / SC / NBR 40x60x12406012NBRSC20
AT / SC / NBR 40x62x740627NBRSC20
AT / CT / NBR 40x62x740627NBRTC20
AT / CT / NBR 40x62x840628NBRTC20
AT / SC / NBR 40x62x840628NBRSC20
AT / SC / NBR 40x62x10406210NBRSC20
AT / CT / NBR 40x62x10406210NBRTC20
AT / CT / NBR 40x63x7ss40637NBRTC20
AT / SC / NBR 40x63x10406310NBRSC20
AT / CT / NBR 40x65x10406510NBRTC20
AT / SC / NBR 40x65x10406510NBRSC20
AT / SC / NBR 40x68x840688NBRSC20
AT / CT / NBR 40x68x840688NBRTC20
AT / CT / NBR 40x68x10406810NBRTC20
AT / SC / NBR 40x68x10406810NBRSC20
AT / SC / NBR 40x68x12406812NBRSC20
AT / SC / NBR 40x70x10407010NBRSC20
AT / CT / NBR 40x70x10407010NBRTC20
AT / CT / NBR 40x72x740727NBRTC20
AT / SC / NBR 40x72x740727NBRSC20
AT / SC / NBR 40x72x10407210NBRSC20
AT / CT / NBR 40x72x10407210NBRTC20
AT / CT / NBR 40x80x740807NBRTC20
AT / CT / NBR 40x80x840808NBRTC20
AT / SC / NBR 40x80x840808NBRSC20
AT / SC / NBR 40x80x10408010NBRSC20
AT / CT / NBR 40x80x10408010NBRTC20
AT / CT / NBR 40x80x12408012NBRTC20
AT / SC / NBR 40x85x10408510NBRSC20
AT / SC / NBR 40x88x640886NBRSC20
AT / SC / NBR 40x90x840908NBRSC20
AT / SC / NBR 40x90x10409010NBRSC20
AT / CT / NBR 40x90x10409010NBRTC20
AT / CT / NBR 40x110x104011010NBRTC10
AT / CT / NBR 41x53x741537NBRTC20
AT / SC / NBR 42x55x742557NBRSC20
AT / SC / NBR 42x55x842558NBRSC20
AT / CT / NBR 42x55x842558NBRTC20
AT / CT / NBR 42x56x742567NBRTC20
AT / SC / NBR 42x56x742567NBRSC20
AT / SC / NBR 42x58x10425810NBRSC20
AT / CT / NBR 42x60x10426010NBRTC20
AT / SC / NBR 42x60x10426010NBRSC20
AT / SC / NBR 42x60x12426012NBRSC20
AT / SC / NBR 42x62x742627NBRSC20
AT / CT / NBR 42x62x742627NBRTC20
AT / CT / NBR 42x62x842628NBRTC20
AT / SC / NBR 42x62x842628NBRSC20
AT / SC / NBR 42x62x10426210NBRSC20
AT / CT / NBR 42x62x10426210NBRTC20
AT / CT / NBR 42x65x10426510NBRTC20
AT / SC / NBR 42x65x10426510NBRSC20
AT / CT / NBR 42x68x842688NBRTC20
AT / CT / NBR 42x72x842728NBRTC20
AT / SC / NBR 42x72x842728NBRSC20
AT / SC / NBR 42x72x10427210NBRSC20
AT / SC / NBR 42.86x63.5x9.5242.8663.59:52NBRSC20
AT / CT / NBR 43x55x9.543559.5NBRTC20
AT / SC / NBR 43x75x10437510NBRSC20
AT / SC / NBR 44x60x10446010NBRSC20
AT / SC / NBR 44x62x10446210NBRSC20
AT / SC / NBR 45x55x745557NBRSC20
AT / CT / NBR 45x55x745557NBRTC20
AT / SC / NBR 45x56x745567NBRSC20
AT / CT / NBR 45x57x10455710NBRTC20
AT / CT / NBR 45x58x745587NBRTC20
AT / CT / NBR 45x58x845588NBRTC20
AT / CT / NBR 45x60x745607NBRTC20
AT / SC / NBR 45x60x745607NBRSC20
AT / SC / NBR 45x60x845608NBRSC20
AT / CT / NBR 45x60x845608NBRTC20
AT / SC / NBR 45x60x945609NBRSC20
AT / SC / NBR 45x60x10456010NBRSC20
AT / CT / NBR 45x60x10456010NBRTC20
AT / CT / NBR 45x62x745627NBRTC20
AT / SC / NBR 45x62x745627NBRSC20
AT / SC / NBR 45x62x845628NBRSC20
AT / CT / NBR 45x62x845628NBRTC20
AT / CT / NBR 45x62x10456210NBRTC20
AT / SC / NBR 45x62x10456210NBRSC20
AT / SC / NBR 45x65x845658NBRSC20
AT / CT / NBR 45x65x845658NBRTC20
AT / CT / NBR 45x65x10456510NBRTC20
AT / SC / NBR 45x65x10456510NBRSC20
AT / CT / NBR 45x66x10456610NBRTC20
AT / SC / NBR 45x66x10456610NBRSC20
AT / SC / NBR 45x68x10456810NBRSC20
AT / SC / NBR 45x70x745707NBRSC20
AT / SC / NBR 45x72x745727NBRSC20
AT / CT / NBR 45x72x845728NBRTC20
AT / SC / NBR 45x72x845728NBRSC20
AT / SC / NBR 45x72x10457210NBRSC20
AT / CT / NBR 45x72x10457210NBRTC20
AT / SC / NBR 45x75x845758NBRSC20
AT / CT / NBR 45x75x845758NBRTC20
AT / CT / NBR 45x75x10457510NBRTC20
AT / SC / NBR 45x75x10457510NBRSC20
AT / SC / NBR 45x80x10458010NBRSC20
AT / CT / NBR 45x80x10458010NBRTC20
AT / CT / NBR 45x80x12458012NBRTC20
AT / SC / NBR 45x80x13458013NBRSC20
AT / CT / NBR 45x85x10458510NBRTC20
AT / SC / NBR 45x85x10458510NBRSC20
AT / SC / NBR 45x90x10459010NBRSC20
AT / CT / NBR 45x90x10459010NBRTC20
AT / SC / NBR 45x93x645936NBRSC20
AT / SC / NBR 45x100x104510010NBRSC20
AT / CT / NBR 45x100x104510010NBRTC20
AT / SC / NBR 45x100x124510012NBRSC20
AT / SC / NBR 46x64x846648NBRSC20
AT / CT / NBR 46x64x14466414NBRTC20
AT / CT / NBR 46x65x10466510NBRTC20
AT / SC / NBR 46x65x10466510NBRSC20
AT / SC / NBR 47x58x647586NBRSC20
AT / CT / NBR 47x65x10476510NBRTC20
AT / CT / NBR 47x67x10476710NBRTC20
AT / CT / NBR 48x62x848628NBRTC20
AT / SC / NBR 48x62x848628NBRSC20
AT / SC / NBR 48x62x10486210NBRSC20
AT / CT / NBR 48x65x848658NBRTC20
AT / CT / NBR 48x65x10486510NBRTC20
AT / SC / NBR 48x65x10486510NBRSC20
AT / CT / NBR 48x67x10486710NBRTC20
AT / CT / NBR 48x68x10486810NBRTC20
AT / SC / NBR 48x68x10486810NBRSC20
AT / CT / NBR 48x70x10487010NBRTC20
AT / CT / NBR 48x72x848728NBRTC20
AT / SC / NBR 48x72x848728NBRSC20
AT / SC / NBR 48x72x10487210NBRSC20
AT / CT / NBR 48x72x10487210NBRTC20
AT / CT / NBR 48x80x10488010NBRTC20
AT / SC / NBR 48x80x10488010NBRSC20
AT / SC / NBR 48x85x10488510NBRSC20
AT / SC / NBR 49x65x10496510NBRSC20
AT / SC / NBR 49.50x60x849.50608NBRSC20
AT / CT / NBR 50x62x750627NBRTC20
AT / SC / NBR 50x62x850628NBRSC20
AT / CT / NBR 50x62x10506210NBRTC20
AT / CT / NBR 50x65x8/1050658NBRTC20
AT / CT / NBR 50x65x850658NBRTC20
AT / SC / NBR 50x65x850658NBRSC20
AT / SC / NBR 50x65x10506510NBRSC20
AT / SC / NBR 50x68x850688NBRSC20
AT / CT / NBR 50x68x850688NBRTC20
AT / CT / NBR 50x68x10506810NBRTC20
AT / SC / NBR 50x68x10506810NBRSC20
AT / SC / NBR 50x70x10507010NBRSC20
AT / CT / NBR 50x70x10507010NBRTC20
AT / CT / NBR 50x72x850728NBRTC20
AT / SC / NBR 50x72x850728NBRSC20
AT / SC / NBR 50x72x10507210NBRSC20
AT / CT / NBR 50x72x10507210NBRTC20
AT / CT / NBR 50x72x12507212NBRTC20
AT / SC / NBR 50x75x10507510NBRSC20
AT / CT / NBR 50x75x12507512NBRTC20
AT / CT / NBR 50x80x850808NBRTC20
AT / SC / NBR 50x80x850808NBRSC20
AT / SC / NBR 50x80x10508010NBRSC20
AT / CT / NBR 50x80x10508010NBRTC20
AT / CT / NBR 50x80x13508013NBRTC20
AT / CT / NBR 50x85x10508510NBRTC20
AT / SC / NBR 50x85x10508510NBRSC20
AT / SC / NBR 50x90x10509010NBRSC20
AT / CT / NBR 50x90x10509010NBRTC20
AT / CT / NBR 50x98x650986NBRTC20
AT / CT / NBR 50x100x105010010NBRTC20
AT / SC / NBR 50x110x125011012NBRSC10
AT / CT / NBR 50x130x155013015NBRTC10
AT / SC / NBR 52x62x852628NBRSC20
AT / CT / NBR 52x68x752687NBRTC20
AT / CT / NBR 52x68x852688NBRTC20
AT / SC / NBR 52x68x852688NBRSC20
AT / CT / NBR 52x68x10526810NBRTC20
AT / CT / NBR 52x70x952709NBRTC20
AT / CT / NBR 52x72x852728NBRTC20
AT / SC / NBR 52x72x852728NBRSC20
AT / CT / NBR 52x72x10527210NBRTC20
AT / CT / NBR 52x72x10527210NBRTC20
AT / SC / NBR 52x75x852758NBRSC20
AT / SC / NBR 52x75x12527512NBRSC20
AT / SC / NBR 52x78x852788NBRSC20
AT / CT / NBR 52x80x10528010NBRTC20
AT / CT / NBR 52x80x13528013NBRTC20
AT / CT / NBR 52x85x10528510NBRTC20
AT / SC / NBR 52x85x10528510NBRSC20
AT / SC / NBR 53x79x10537910NBRSC20
AT / CT / NBR 54x72x10547210NBRTC20
AT / CT / NBR 54x81x10548110NBRTC20
AT / SC / NBR 54x85x10548510NBRSC20
AT / SC / NBR 55x68x855688NBRSC20
AT / SC / NBR 55x70x855708NBRSC20
AT / CT / NBR 55x70x855708NBRTC20
AT / CT / NBR 55x70x10557010NBRTC20
AT / SC / NBR 55x70x10557010NBRSC20
AT / SC / NBR 55x72x855728NBRSC20
AT / CT / NBR 55x72x855728NBRTC20
AT / CT / NBR 55x72x10557210NBRTC20
AT / SC / NBR 55x72x10557210NBRSC20
AT / SC / NBR 55x75x10557510NBRSC20
AT / CT / NBR 55x75x10557510NBRTC20
AT / SC / NBR 55x75x12557512NBRSC20
AT / SC / NBR 55x78x12557812NBRSC20
AT / SC / NBR 55x80x555805NBRSC20
AT / SC / NBR 55x80x655806NBRSC20
AT / CT / NBR 55x80x855808NBRTC20
AT / SC / NBR 55x80x855808NBRSC20
AT / SC / NBR 55x80x10558010NBRSC20
AT / CT / NBR 55x80x10558010NBRTC20
AT / SC / NBR 55x85x855858NBRSC20
AT / SC / NBR 55x85x10558510NBRSC20
AT / CT / NBR 55x85x10558510NBRTC20
AT / CT / NBR 55x90x855908NBRTC20
AT / SC / NBR 55x90x855908NBRSC20
AT / CT / NBR 55x90x10559010NBRTC20
AT / SC / NBR 55x90x10559010NBRSC20
AT / CT / NBR 55x100x105510010NBRTC20
AT / CT / NBR 55x100x125510012NBRTC20
AT / SC / NBR 55x100x125510012NBRSC20
AT / SC / NBR 55x120x125512012NBRSC10
AT / SC / NBR 56x70x856708NBRSC20
AT / SC / NBR 56x72x856728NBRSC20
AT / SC / NBR 56x80x856808NBRSC20
AT / SC / NBR 56x85x856858NBRSC20
AT / SC / NBR 58x72x858728NBRSC20
AT / CT / NBR 58x72x858728NBRTC20
AT / CT / NBR 58x78x858788NBRTC20
AT / SC / NBR 58x78x13587813NBRSC20
AT / SC / NBR 58x80x858808NBRSC20
AT / SC / NBR 58x80x10588010NBRSC20
AT / CT / NBR 58x80x10588010NBRTC20
AT / SC / NBR 58x90x10589010NBRSC20
AT / SC / NBR 60x70x760707NBRSC20
AT / SC / NBR 60x72x860728NBRSC20
AT / SC / NBR 60x75x860758NBRSC20
AT / CT / NBR 60x75x860758NBRTC20
AT / CT / NBR 60x78x960789NBRTC20
AT / CT / NBR 60x78x10607810NBRTC20
AT / CT / NBR 60.5x78x10607810NBRTC20
AT / CT / NBR 60x80x760807NBRTC20
AT / CT / NBR 60x80x860808NBRTC20
AT / SC / NBR 60x80x860808NBRSC20
AT / SC / NBR 60x80x10608010NBRSC20
AT / CT / NBR 60x80x10608010NBRTC20
AT / CT / NBR 60x80x12608012NBRTC20
AT / CT / NBR 60x82x12608212NBRTC20
AT / SC / NBR 60x85x860858NBRSC20
AT / CT / NBR 60x85x860858NBRTC20
AT / CT / NBR 60x85x10608510NBRTC20
AT / SC / NBR 60x85x10608510NBRSC20
AT / SC / NBR 60x90x860908NBRSC20
AT / CT / NBR 60x90x860908NBRTC20
AT / CT / NBR 60x90x10609010NBRTC20
AT / SC / NBR 60x90x10609010NBRSC20
AT / SC / NBR 60x95x10609510NBRSC20
AT / CT / NBR 60x95x10609510NBRTC20
AT / CT / NBR 60x100x106010010NBRTC20
AT / CT / NBR 60x100x136010013NBRTC20
AT / CT / NBR 60x110x126011012NBRTC10
AT / SC / NBR 60x110x136011013NBRSC10
AT / SC / NBR 60x130x126013012NBRSC10
AT / CT / NBR 60x140x156014015NBRTC10
AT / CT / NBR 62x85x10628510NBRTC20
AT / SC / NBR 62x85x10628510NBRSC20
AT / SC / NBR 62x90x10629010NBRSC20
AT / CT / NBR 62x90x10629010NBRTC20
AT / SC / NBR 62x100x126210012NBRSC20
AT / CT / NBR 63x80x963809NBRTC20
AT / SC / NBR 63x85x10638510NBRSC20
AT / CT / NBR 63x90x10639010NBRTC20
AT / SC / NBR 63x90x10639010NBRSC20
AT / CT / NBR 63x100x106310010NBRTC20
AT / SC / NBR 64x80x864808NBRSC20
AT / CT / NBR 64x80x864808NBRTC20
AT / CT / NBR 64x85x10648510NBRTC20
AT / CT / NBR 65x75x865758NBRTC20
AT / SC / NBR 65x80x865808NBRSC20
AT / SC / NBR 65x80x865808NBRSC20
AT / SC / NBR 65x80x10658010NBRSC20
AT / CT / NBR 65x80x10658010NBRTC20
AT / CT / NBR 65x85x865858NBRTC20
AT / SC / NBR 65x85x865858NBRSC20
AT / CT / NBR 65x85x10658510NBRTC20
AT / SC / NBR 65x85x10658510NBRSC20
AT / CT / NBR 65x85x12658512NBRTC20
AT / CT / NBR 65x90x10659010NBRTC20
AT / SC / NBR 65x90x10659010NBRSC20
AT / SC / NBR 65x95x10659510NBRSC20
AT / CT / NBR 65x95x10659510NBRTC20
AT / CT / NBR 65x100x106510010NBRTC20
AT / SC / NBR 65x100x106510010NBRSC20
AT / SC / NBR 65x100x126510012NBRSC20
AT / CT / NBR 65x110x106511013NBRTC10
AT / CT / NBR 65x120x136512013NBRTC10
AT / SC / NBR 65x125x126512512NBRSC10
AT / SC / NBR 66x100x106610010NBRSC20
AT / SC / NBR 68x90x10689010NBRSC20
AT / CT / NBR 68x90x10689010NBRTC20
AT / CT / NBR 68x98x10689810NBRTC20
AT / SC / NBR 68x100x106810010NBRSC20
AT / SC / NBR 68x100x136810013NBRSC20
AT / SC / NBR 70x85x870858NBRSC20
AT / CT / NBR 70x85x870858NBRTC20
AT / SC / NBR 70x85x10708510NBRSC20
AT / CT / NBR 70x90x10709010NBRTC20
AT / SC / NBR 70x90x10709010NBRSC20
AT / SC / NBR 70x90x12709012NBRSC20
AT / SC / NBR 70x95x10709510NBRSC20
AT / CT / NBR 70x95x10709510NBRTC20
AT / CT / NBR 70x95x12709512NBRTC20
AT / CT / NBR 70x95x13709513NBRTC20
AT / SC / NBR 70x95x13709513NBRSC20
AT / CT / NBR 70x100x107010010NBRTC20
AT / SC / NBR 70x100x107010010NBRSC20
AT / SC / NBR 70x102x127010212NBRSC10
AT / CT / NBR 70x105x127010512NBRTC10
AT / SC / NBR 70x110x8701108NBRSC10
AT / SC / NBR 70x110x107011010NBRSC10
AT / CT / NBR 70x110x107011010NBRTC10
AT / CT / NBR 70x110x107011010NBRTC10
AT / CT / NBR 70x110x127011012NBRTC10
AT / SC / NBR 70x110x127011012NBRSC10
AT / CT / NBR 70x120x127012012NBRTC10
AT / SC / NBR 70x120x127012012NBRSC10
AT / SC / NBR 70x150x127015012NBRSC10
AT / SC / NBR 71x88x871888NBRSC20
AT / SC / NBR 72x85x10728510NBRSC20
AT / SC / NBR 72x90x10729010NBRSC20
AT / SC / NBR 72x95x10729510NBRSC20
AT / SC / NBR 72x95x12729512NBRSC20
AT / SC / NBR 72x100x107210010NBRSC20
AT / CT / NBR 72x100x107210010NBRTC20
AT / CT / NBR 72x110x107211010NBRTC10
AT / SC / NBR 72x110x127211012NBRSC10
AT / CT / NBR 75x90x875908NBRTC20
AT / SC / NBR 75x90x875908NBRSC20
AT / CT / NBR 75x90x10759010NBRTC20
AT / SC / NBR 75x90x10759010NBRSC20
AT / SC / NBR 75x90x12759012NBRSC20
AT / CT / NBR 75x90x12759012NBRTC20
AT / CT / NBR 75x95x975959NBRTC20
AT / CT / NBR 75x95x10759510NBRTC20
AT / SC / NBR 75x95x10759510NBRSC20
AT / SC / NBR 75x95x12759512NBRSC20
AT / CT / NBR 75x100x10751001NBRTC20
AT / SC / NBR 75x100x107510010NBRSC20
AT / SC / NBR 75x100x127510012NBRSC20
AT / CT / NBR 75x105x137510513NBRTC10
AT / CT / NBR 75x110x127511012NBRTC10
AT / SC / NBR 75x110x127511012NBRSC10
AT / CT / NBR 75x110x137511013NBRTC10
AT / CT / NBR 75x120x127512012NBRTC10
AT / SC / NBR 75x120x127512012NBRSC10
AT / CT / NBR 75x130x107513010NBRTC10
AT / CT / NBR 76x100x167610016NBRTC20
AT / SC / NBR 78x90x878908NBRSC20
AT / SC / NBR 78x100x107810010NBRSC20
AT / SC / NBR 78x110x127811012NBRSC10
AT / SC / NBR 80x100x108010010NBRSC20
AT / CT / NBR 80x100x108010010NBRTC20
AT / CT / NBR 80x100x128010012NBRTC20
AT / CT / NBR 80x100x138010013NBRTC20
AT / SC / NBR 80x100x138010013NBRSC20
AT / SC / NBR 80x105x108010510NBRSC10
AT / CT / NBR 80x105x128010512NBRTC10
AT / SC / NBR 80x105x128010512NBRSC10
AT / SC / NBR 80x105x138010513NBRSC10
AT / CT / NBR 80x110x108011010NBRTC10
AT / SC / NBR 80x110x108011010NBRSC10
AT / SC / NBR 80x110x128011012NBRSC10
AT / CT / NBR 80x110x128011012NBRTC10
AT / SC / NBR 80x120x128012012NBRSC10
AT / CT / NBR 80x120x138012013NBRTC10
AT / CT / NBR 80x125x108012510NBRTC10
AT / CT / NBR 80x125x128012512NBRTC10
AT / SC / NBR 80x125x128012512NBRSC10
AT / CT / NBR 82x105x10/128210510NBRTC20
AT / SC / NBR 82x105x128210512NBRSC10
AT / SC / NBR 85x100x6851006NBRSC20
AT / SC / NBR 85x100x9851009NBRSC20
AT / CT / NBR 85x100x188510018NBRTC20
AT / SC / NBR 85x105x8851058NBRSC10
AT / CT / NBR 85x105x108510510NBRTC10
AT / SC / NBR 85x105x108510510NBRSC10
AT / SC / NBR 85x105x138510513NBRSC10
AT / CT / NBR 85x105x138510513NBRTC10
AT / CT / NBR 85x110x128511012NBRTC10
AT / SC / NBR 85x110x128511012NBRSC10
AT / SC / NBR 85x110x138511013NBRSC10
AT / CT / NBR 85x110x138511013NBRTC10
AT / SC / NBR 85x120x128512012NBRSC10
AT / CT / NBR 85x120x138512013NBRTC10
AT / CT / NBR 85x125x128512512NBRTC10
AT / CT / NBR 85x130x128513012NBRTC10
AT / SC / NBR 85x130x128513012NBRSC10
AT / SC / NBR 85x140x128514012NBRSC10
AT / CT / NBR 85x140x128514012NBRTC10
AT / SC / NBR 88x105x128810512NBRSC10
AT / SC / NBR 88x110x128811012NBRSC10
AT / SC / NBR 88x140x128814012NBRSC10
AT / SC / NBR 88x150.50x1388150.5013NBRSC10
AT / CT / NBR 90x105x109010510NBRTC10
AT / SC / NBR 90x110x109011010NBRSC10
AT / SC / NBR 90x110x129011012NBRSC10
AT / CT / NBR 90x110x129011012NBRTC10
AT / SC / NBR 90x110x139011013NBRSC10
AT / SC / NBR 90x115x9901159NBRSC10
AT / CT / NBR 90x115x139011513NBRTC10
AT / SC / NBR 90x115x139011513NBRSC10
AT / SC / NBR 90x120x129012012NBRSC10
AT / CT / NBR 90x120x129012012NBRTC10
AT / CT / NBR 90x120x139012013NBRTC10
AT / SC / NBR 90x120x139012013NBRSC10
AT / SC / NBR 90x125x129012512NBRSC10
AT / SC / NBR 90x130x129013012NBRSC10
AT / CT / NBR 90x130x129013012NBRTC10
AT / SC / NBR 90x130x139013013NBRSC10
AT / SC / NBR 90x140x139014013NBRSC10
AT / SC / NBR 90x160x129016012NBRSC10
AT / CT / NBR 92x120x129212012NBRTC10
AT / CT / NBR 92x120x139212013NBRTC10
AT / SC / NBR 92x120x139212013NBRSC10
AT / SC / NBR 95x110x109511010NBRSC10
AT / CT / NBR 95x110x129511012NBRTC10
AT / CT / NBR 95x115x129511512NBRTC10
AT / CT / NBR 95x120x8951208NBRTC10
AT / SC / NBR 95x120x8951208NBRSC10
AT / SC / NBR 95x120x129512012NBRSC10
AT / CT / NBR 95x120x129512012NBRTC10
AT / SC / NBR 95x120x139512013NBRSC10
AT / CT / NBR 95x125x109512510NBRTC10
AT / CT / NBR 95x125x129512512NBRTC10
AT / SC / NBR 95x125x129512512NBRSC10
AT / CT / NBR 95x125x139512513NBRTC10
AT / CT / NBR 95x130x129513012NBRTC10
AT / SC / NBR 95x130x129513012NBRSC10
AT / CT / NBR 95x130x139513013NBRTC10
AT / SC / NBR 96x112x109611210NBRSC10
AT / SC / NBR 98x120x139812013NBRSC10
AT / CT / NBR 100x115x91001159NBRTC10
AT / SC / 100x120x10 NBR10012010NBRSC10
AT / SC / 100x120x12 NBR10012012NBRSC10
AT / CT / 100x120x12 NBR10012012NBRTC10
AT / CT / 100x125x12 NBR10012512NBRTC10
AT / SC / 100x125x12 NBR10012512NBRSC10
AT / CT / 100x125x13 NBR10012513NBRTC10
AT / CT / 100x130x12 NBR10013012NBRTC10
AT / SC / 100x130x12 NBR10013012NBRSC10
AT / SC / 100x130x14 NBR10013014NBRSC10
AT / SC / 100x140x13 NBR10014013NBRSC10
AT / SC / 100x150x13 NBR10015013NBRSC10
AT / CT / 100x150x13 NBR10015013NBRTC10
AT / SC / 100x160x12 NBR10016012NBRSC10
AT / SC / 100x180x13 NBR10018013NBRSC10
AT / CT / 102x115x10 NBR10211510NBRTC10
AT / SC / 104x130x10 NBR10413010NBRSC10
AT / CT / 105x125x13 NBR10512513NBRTC10
AT / SC / 105x125x13 NBR10512513NBRSC10
AT / SC / 105x130x12 NBR10513012NBRSC10
AT / CT / 105x130x12 NBR10513012NBRTC10
AT / CT / 105x130x13 NBR10513013NBRTC10
AT / SC / 105x130x15 NBR10513015NBRSC10
AT / CT / 105x135x15 NBR10513515NBRTC10
AT / SC / 105x140x12 NBR10514012NBRSC10
AT / SC / 105x150x15 NBR10515015NBRSC10
AT / SC / NBR 110x130x81101308NBRSC10
AT / CT / 110x130x12 NBR11013012NBRTC10
AT / SC / 110x130x12 NBR11013012NBRSC10
AT / SC / 110x130x13 NBR11013013NBRSC10
AT / SC / 110x135x12 NBR11013512NBRSC10
AT / SC / 110x140x10 NBR11014010NBRSC10
AT / SC / 110x140x12 NBR11014012NBRSC10
AT / SC / 110x140x13 NBR11014013NBRSC10
AT / SC / 110x150x13 NBR11015013NBRSC10
AT / SC / 110x200x13 NBR11020013NBRSC10
AT / CT / 112x140x13 NBR11214013NBRTC10
AT / SC / 115x130x12 NBR11513012NBRSC10
AT / SC / 115x140x10 NBR11514010NBRSC10
AT / CT / 115x140x12 NBR11514012NBRTC10
AT / SC / 115x140x12 NBR11514012NBRSC10
AT / SC / 115x140x13 NBR11514013NBRSC10
AT / CT / 115x140x13 NBR11514013NBRTC10
AT / SC / 115x150x12 NBR11515012NBRSC10
AT / SC / 120x140x13 NBR12014013NBRSC10
AT / SC / 120x150x12 NBR12015012NBRSC10
AT / CT / 120x150x12 NBR12015012NBRTC10
AT / SC / 120x150x13 NBR12015013NBRSC10
AT / CT / 120x150x15 NBR12015015NBRTC10
AT / SC / 120x160x12 NBR12016012NBRSC10
AT / SC / 120x160x13 NBR12016013NBRSC10
AT / SC / 120x160x15 NBR12016015NBRSC10
AT / CT / 120x180x13 NBR12018013NBRTC10
AT / SC / 125x140x10 NBR12514010NBRSC10
AT / CT / 125x143x13 NBR12514313NBRTC10
AT / CT / 125x150x12 NBR12515012NBRTC10
AT / SC / 125x150x12 NBR12515012NBRSC10
AT / CT / 125x155x12 NBR12515512NBRTC10
AT / SC / 125x155x12 NBR12515512NBRSC10
AT / SC / 125x160x12 NBR12516012NBRSC10
AT / SC / 125x160x13 NBR12516013NBRSC10
AT / SC / 128x150x13 NBR12815013NBRSC10
AT / SC / 128x158x20 NBR12815820NBRSC10
AT / SC / 130x150x10 NBR13015010NBRSC10
AT / CT / 130x150x12 NBR13015012NBRTC10
AT / CT / 130x150x13 NBR13015013NBRTC10
AT / CT / 130x150x15 NBR13015015NBRTC10
AT / CT / 130x160x12 NBR13016012NBRTC10
AT / SC / 130x160x12 NBR13016012NBRSC10
AT / SC / 130x160x13 NBR13016013NBRSC10
AT / CT / 130x160x14 NBR13016014NBRTC10
AT / SC / 130x160x15 NBR13016015NBRSC10
AT / CT / 130x160x15 NBR13016015NBRTC10
AT / CT / 130x170x12 NBR13017012NBRTC10
AT / SC / 130x170x12 NBR13017012NBRSC10
AT / SC / 130x170x13 NBR13017013NBRSC10
AT / SC / 130x230x15 NBR13023015NBRSC1
AT / SC / 135x160x12 NBR13516012NBRSC10
AT / CT / 135x160x15 NBR13516015NBRTC10
AT / SC / 135x170x12 NBR13517012NBRSC10
AT / SC / 138x160x15 NBR13816015NBRSC10
AT / CT / 140x160x13 NBR14016013NBRTC10
AT / SC / 140x165x12 NBR14016512NBRSC10
AT / CT / 140x170x12 NBR14017012NBRTC10
AT / SC / 140x170x12 NBR14017012NBRSC10
AT / SC / 140x170x15 NBR14017015NBRSC10
AT / CT / 140x170x15 NBR14017015NBRTC10
AT / SC / 140x180x10 NBR14018010NBRSC10
AT / SC / 140x180x12 NBR14018012NBRSC10
AT / CT / 140x180x12 NBR14018012NBRTC10
AT / CT / 140x180x13 NBR14018013NBRTC10
AT / SC / 140x180x13 NBR14018013NBRSC10
AT / SC / 140x180x15 NBR14018015NBRSC10
AT / CT / 142x157x10 NBR14215710NBRTC10
AT / CT / 145x167x13 NBR14516713NBRTC10
AT / CT / 145x170x13 NBR14517013NBRTC10
AT / CT / 145x170x15 NBR14517015NBRTC10
AT / SC / 145x170x15 NBR14517015NBRSC10
AT / CT / 145x175x14 NBR14517514NBRTC10
AT / CT / 145x175x15 NBR14517515NBRTC10
AT / SC / 145x175x15 NBR14517515NBRSC10
AT / SC / 145x180x12 NBR14518012NBRSC10
AT / CT / 145x180x12 NBR14518012NBRTC10
AT / SC / 145x180x13 NBR14518013NBRSC10
AT / SC / 145x180x14 NBR14518014NBRSC10
AT / SC / NBR 146x163x71461637NBRSC10
AT / SC / NBR 148x170x14.5014817014:50NBRSC10
AT / CT / 148x170x15 NBR14817015NBRTC10
AT / SC / 150x170x12 NBR15017012NBRSC10
AT / CT / 150x180x12 NBR15018012NBRTC10
AT / SC / 150x180x12 NBR15018012NBRSC10
AT / SC / 150x180x13 NBR15018013NBRSC10
AT / CT / 150x180x13 NBR15018013NBRTC10
AT / SC / 150x180x15 NBR15018015NBRSC10
AT / SC / 155x175x12 NBR15517512NBRSC10
AT / CT / 155x185x15 NBR15518515NBRTC10
AT / CT / 160x180x10 NBR16018010NBRTC10
AT / SC / 160x185x10 NBR16018510NBRSC10
AT / CT / 160x185x10 NBR16018510NBRTC10
AT / SC / 160x190x13 NBR16019013NBRSC10
AT / CT / 160x190x13 NBR16019013NBRTC10
AT / CT / 160x190x15 NBR16019015NBRTC10
AT / SC / 160x190x15 NBR16019015NBRSC10
AT / SC / 160x200x12 NBR16020012NBRSC10
AT / CT / NBR 165x190x81651908NBRTC10
AT / CT / 165x190x13 NBR16519013NBRTC10
AT / SC / 165x190x13 NBR16519013NBRSC10
AT / SC / 165x200x15 NBR16520015NBRSC10
AT / CT / 168x190x16 NBR16819016NBRTC10
AT / SC / 170x190x15 NBR17019015NBRSC10
AT / SC / 170x200x12 NBR17020012NBRSC10
AT / SC / 170x200x15 NBR17020015NBRSC10
AT / CT / 170x200x15 NBR17020015NBRTC10
AT / CT / 170x200x15 NBR17020015NBRTC10
AT / CT / 175x200x15 NBR17520015NBRTC10
AT / SC / 175x200x15 NBR17520015NBRSC10
AT / SC / 175x210x14 NBR17521014NBRSC1
AT / SC / 180x200x13 NBR18020013NBRSC10
AT / CT / 180x210x15 NBR18021015NBRTC1
AT / SC / 180x210x15 NBR18021015NBRSC1
AT / SC / 180x215x16 NBR18021516NBRSC1
AT / SC / 180x220x15 NBR18022015NBRSC1
AT / CT / 180x220x15 NBR18022015NBRTC1
AT / SC / 185x215x16 NBR18521516NBRSC1
AT / SC / 185x220x15 NBR18522015NBRSC1
AT / CT / 190x215x15 NBR19021515NBRTC1
AT / CT / 190x215x16 NBR19021516NBRTC1
AT / SC / 190x220x15 NBR19022015NBRSC1
AT / SC / 190x225x16 NBR19022516NBRSC1
AT / CT / 190x225x16 NBR19022516NBRTC1
AT / CT / 190x230x16 NBR19023016NBRTC1
AT / SC / 200x225x15 NBR20022515NBRSC1
AT / SC / 200x230x13 NBR20023013NBRSC1
AT / CT / 200x230x15 NBR20023015NBRTC1
AT / SC / 200x230x15 NBR20023015NBRSC1
AT / CT / 200x240x15 NBR20024015NBRTC1
AT / SC / 200x250x15 NBR20025015NBRSC1
AT / SC / 205x230x16 NBR20523016NBRSC1
AT / CT / 207x240x16 NBR20724016NBRTC1
AT / CT / 210x240x15 NBR21024015NBRTC1
AT / SC / 210x240x15 NBR21024015NBRSC1
AT / SC / 210x250x15 NBR21025015NBRSC1
AT / SC / 210x290x20 NBR21029020NBRSC1
AT / CT / 210x290x20 NBR21029020NBRTC1
AT / SC / 220x250x12 NBR22025012NBRSC1
AT / CT / 220x250x15 NBR22025015NBRTC1
AT / SC / 220x250x15 NBR22025015NBRSC1
AT / SC / 220x255x16 NBR22025516NBRSC1
AT / SC / 220x260x16 NBR22026016NBRSC1
AT / CT / 230x260x15 NBR23026015NBRTC1
AT / SC / 230x260x15 NBR23026015NBRSC1
AT / SC / 230x280x15 NBR23028015NBRSC1
AT / SC / 240x270x15 NBR24027015NBRSC1
AT / SC / 240x275x16 NBR24027516NBRSC1
AT / SC / 240x280x15 NBR24028015NBRSC1
AT / SC / 250x280x15 NBR25028015NBRSC1
AT / CT / 250x280x15 NBR25028015NBRTC1
AT / CT / 250x285x18 NBR25028518NBRTC1
AT / CT / 260x290x15 NBR26029015NBRTC1
AT / SC / 260x290x15 NBR26029015NBRSC1
AT / SC / 260x300x20 NBR26030020NBRSC1
AT / SC / 265x290x15 NBR26529015NBRSC1
AT / SC / 265x290x16 NBR26529016NBRSC1
AT / SC / 280x310x15 NBR28031015NBRSC1
AT / CT / 280x310x16 NBR28031016NBRTC1
AT / CT / 280x320x20 NBR28032020NBRTC1
AT / SC / 280x320x20 NBR28032020NBRSC1
AT / SC / 290x334x20 NBR29033420NBRSC1
AT / CT / 300x320x18 NBR30032018NBRTC1
AT / CT / 300x340x18 NBR30034018NBRTC1
AT / SC / 300x340x18 NBR30034018NBRSC1
AT / SC / 300x340x20 NBR30034020NBRSC1
AT / CT / 310x340x15 NBR31034015NBRTC1
AT / SC / 320x360x18 NBR32036018NBRSC1
AT / CT / 320x360x20 NBR32036020NBRTC1
AT / SC / 320x360x20 NBR32036020NBRSC1
AT / SC / 330x370x18 NBR33037018NBRSC1
AT / SC / 340x380x18 NBR34038018NBRSC1
AT / SC / 340x380x18 NBR34038018NBRSC1
AT / SC / 350x390x18 NBR35039018NBRSC1
AT / CT / 360x390x15 NBR36039015NBRTC1
AT / SC / 370x410x15 NBR37041015NBRSC1
AT / CT / 380x420x20 NBR38042020NBRTC1
AT / SC / 380x420x20 NBR38042020NBRSC1
AT / SC / 390x430x20 NBR39043020NBRSC1
AT / SC / 394x420x16 NBR39442016NBRSC1
AT / CT / 394x420x16 NBR39442016NBRTC1
AT / SC / 400x440x20 NBR40044020NBRSC1
AT / SC / 420x460x20 NBR42046020NBRSC1
AT / CT / 420x470x20 NBR42047020NBRTC1
AT / CT / 440x480x20 NBR44048020NBRTC1
AT / SC / 440x480x20 NBR44048020NBRSC1
AT / SC / 450x500x22 NBR45050022NBRSC1
AT / SC / 480x520x20 NBR48052020NBRSC1
AT / CT / 480x520x20 NBR48052020NBRTC1
AT / CT / 500x540x20 NBR50054020NBRTC1
AT / SC / 500x540x20 NBR50054020NBRSC1

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.


Software by Tommy Marasco
