PROFILES IN RUBBER INSPIRED TO U





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reade




FEATURES:

Animated gifs are profiled with a metallic bimescola that allows the same molding and adaptation to different shapes which are mounted on metal.

People mainly for the automotive field have also been widely used in mechanics and metal closures providing excellent and good isolamneto dust and weather.

Below the map to simplify the reading of the table drawn.



MATERIALS:

GA = rubber sponge.

GC = Rubber Compact.

P = PVC.



The PVC profiles can be performed in Type SOFT - Semi-rigid - stiff.



INSERT:

= THE BLADE.

ILR = BROKEN BLADE.

= IF WIRE.



NOTES:

All profiles in the catalog can be manufactured in various compounds (EPM, CR, NBR, Silicone) and contract specifications and approvals.



Profiles can be performed on design and technical specifications of the customer.



Tolerances Roll length: ± 5%.

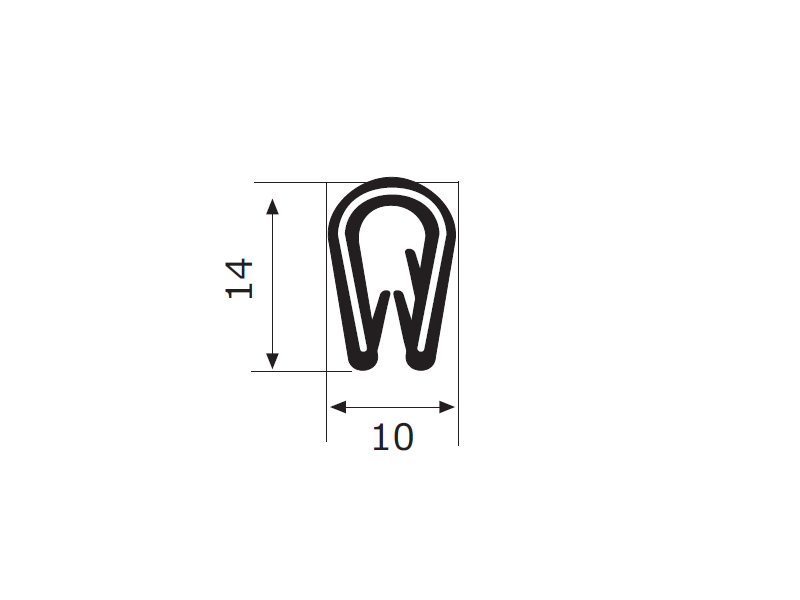

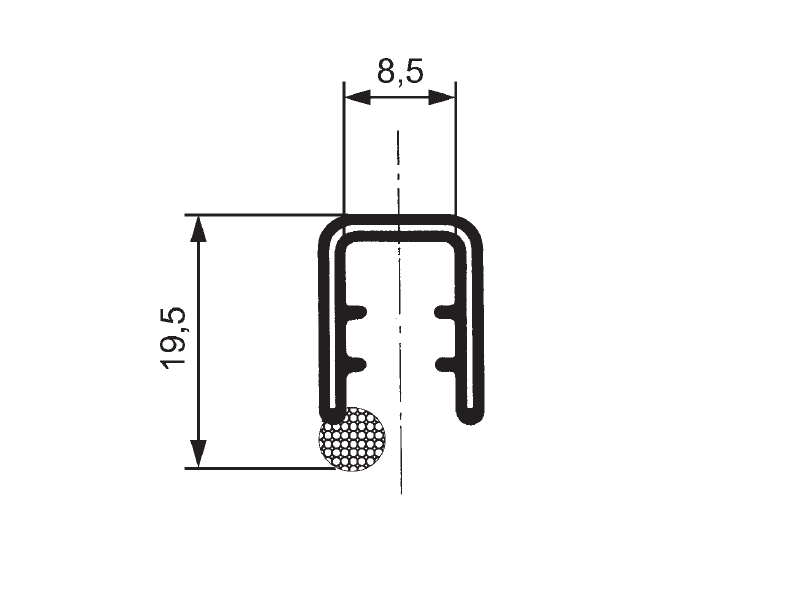

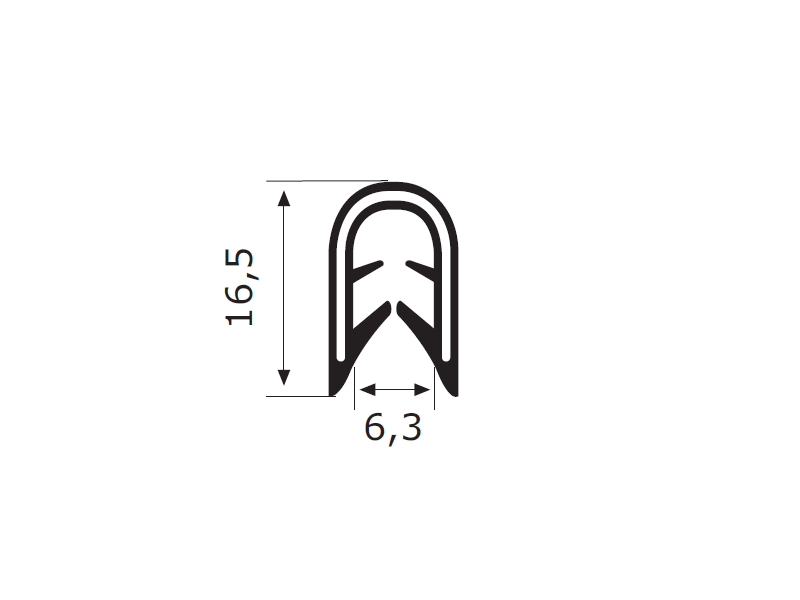

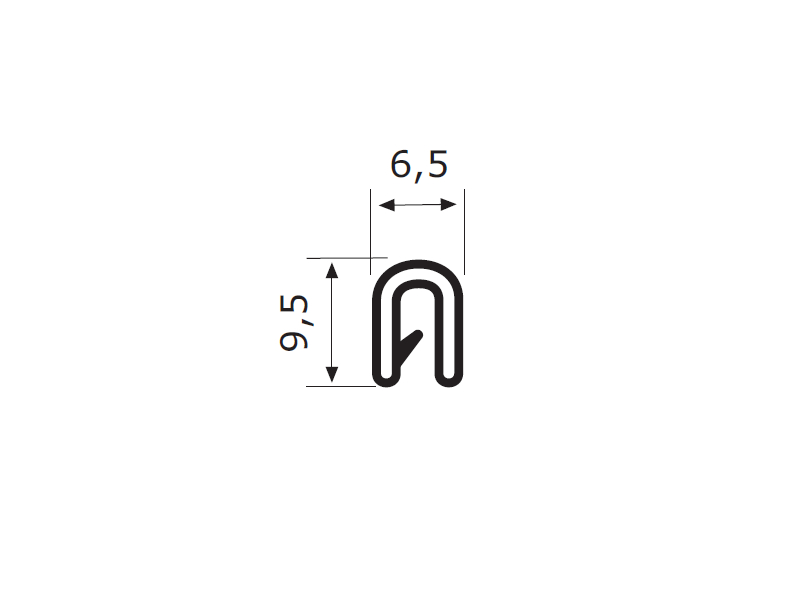

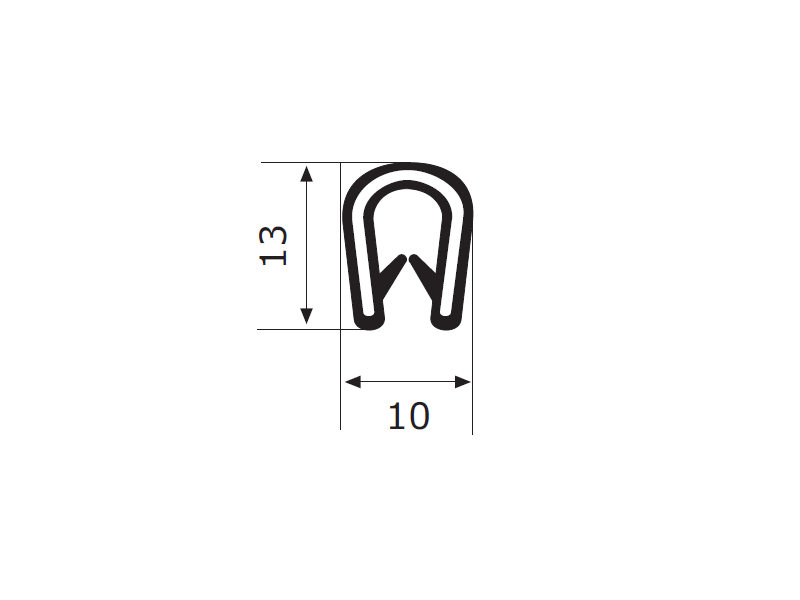

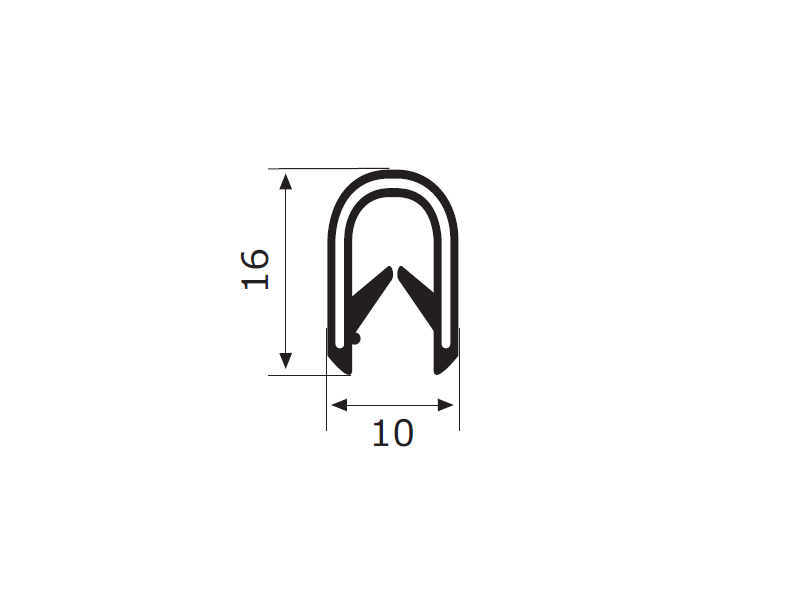

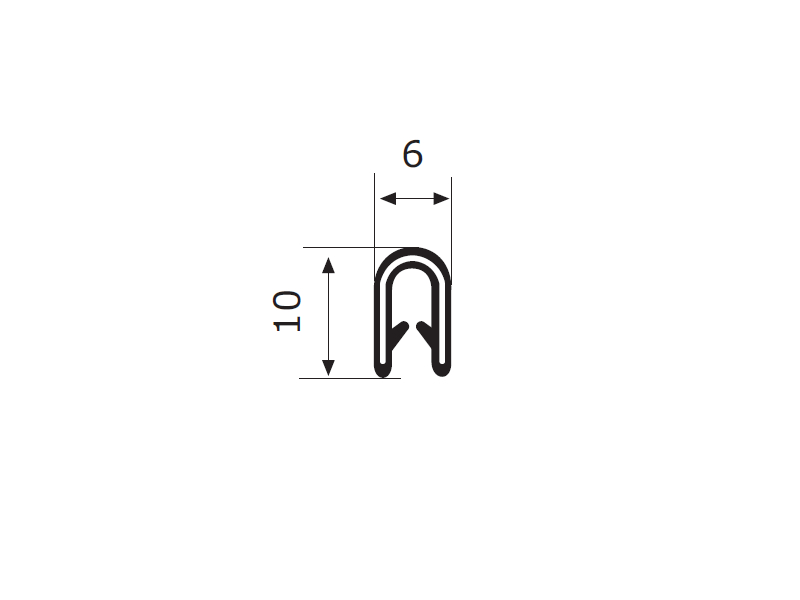

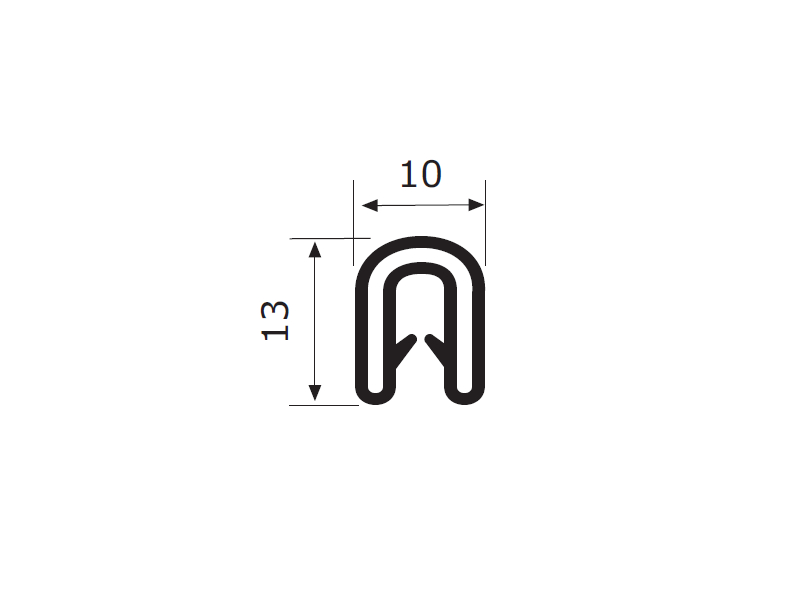

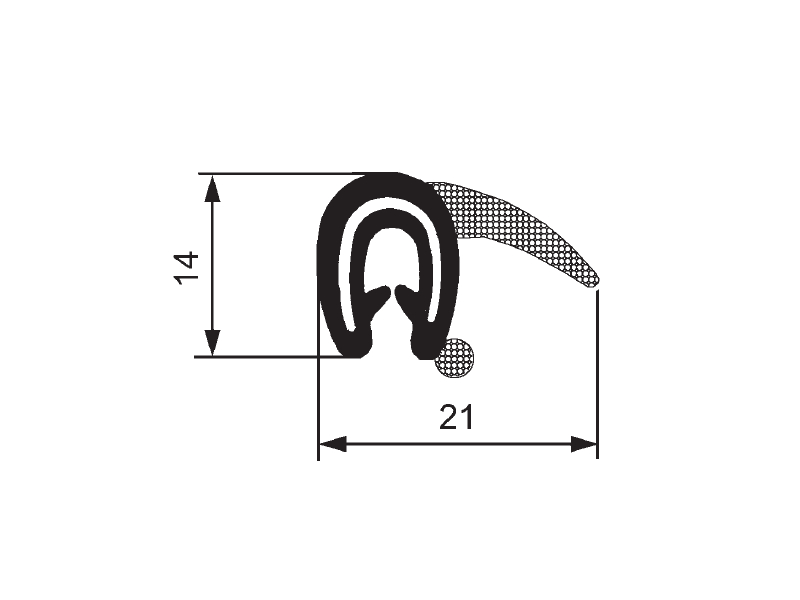

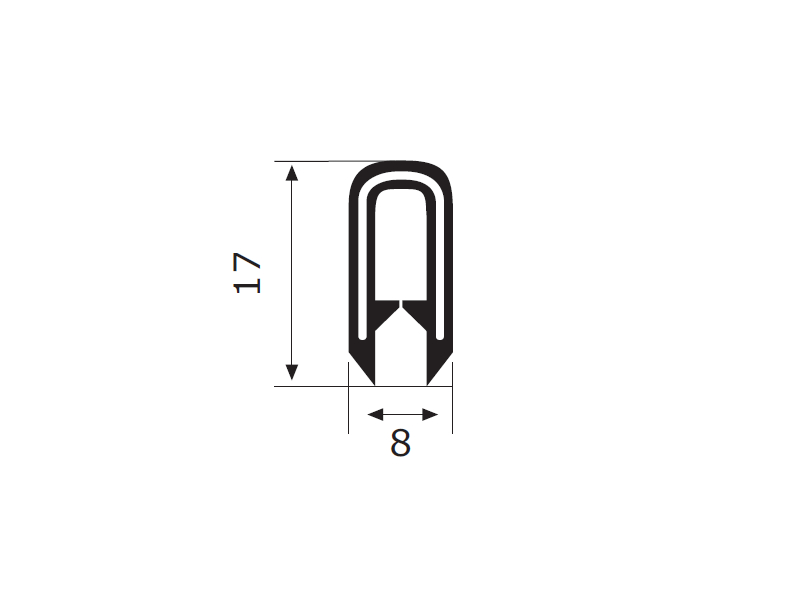

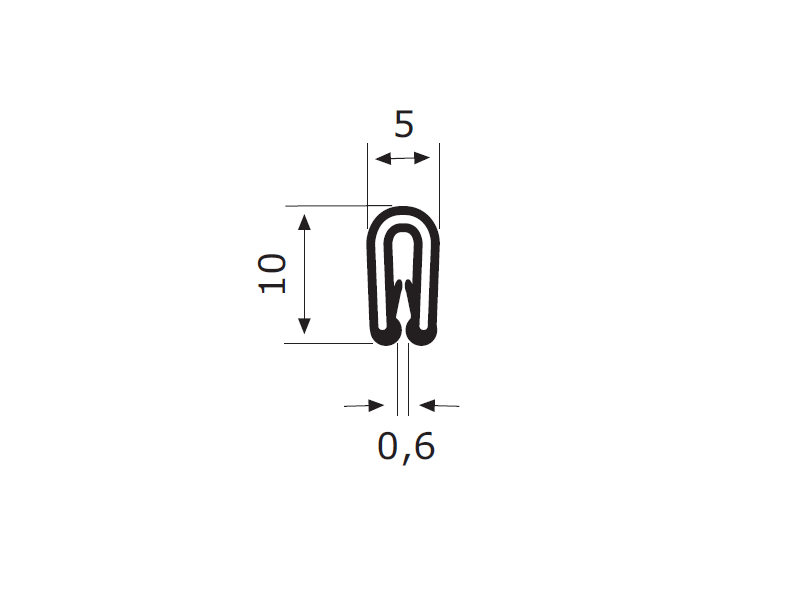

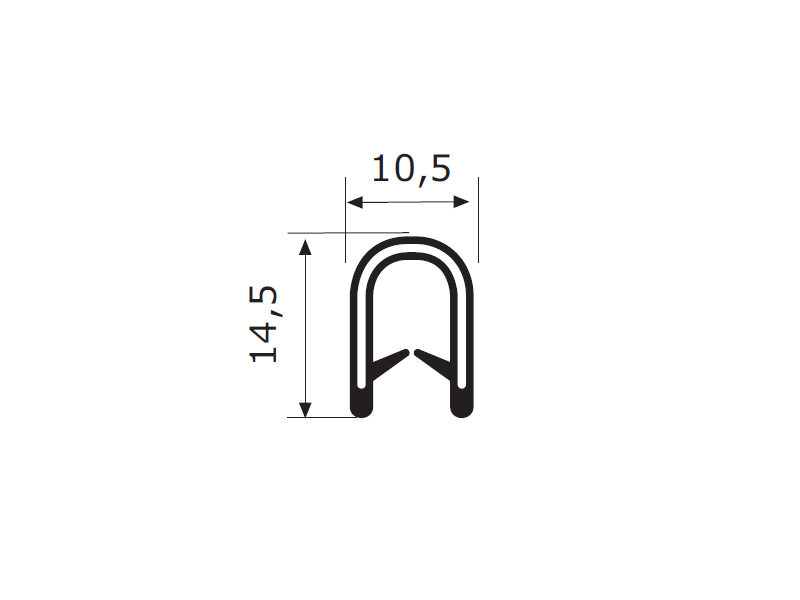

CodePhotoMaterial To roll away.SealantInsert
M10.8913P
foro_profilo
GS + GC50NO+ + IF THE ILR
M10.8913
foto_profilo
GS + GC200NOTHE
M10.1044
foro_profilo
GS + GC50NOTHE
M10.1025
foto_profilo
GS + GC50NO+ IF THE
M10.34116
foro_profilo
GS + GC25NOTHE
M10.8911P
foto_profilo
GS + GC50NOTHE
M10.8915
foro_profilo
GS + GC50NOILR
M10.8915P
foto_profilo
GS + GC50NOTHE
M10.1004
foro_profilo
GS + GC50NOTHE
M10.8914
foto_profilo
GS + GC50NOTHE
M10.7295
foro_profilo
GS + GC24YES and NOTHE
M10.74115
foto_profilo
GS + GC25NOTHE

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
