PROFILES IN RUBBER "INSPIRED Wing"





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reade




FEATURES:

Animated gifs are profiled with a metallic bimescola that allows the same molding and adaptation to different shapes which are mounted on metal.

People mainly for the automotive field have also been widely used in mechanics and metal closures providing excellent and good isolamneto dust and weather.

Below the map to simplify the reading of the table drawn.



MATERIALS:

GA = rubber sponge.

GC = Rubber Compact.

P = PVC.



The PVC profiles can be performed in Type SOFT - Semi-rigid - stiff.



INSERT:

= THE BLADE.

ILR = BROKEN BLADE.

= IF WIRE.



NOTES:

All profiles in the catalog can be manufactured in various compounds (EPM, CR, NBR, Silicone) and contract specifications and approvals.



Profiles can be performed on design and technical specifications of the customer.



Tolerances Roll length: ± 5%.

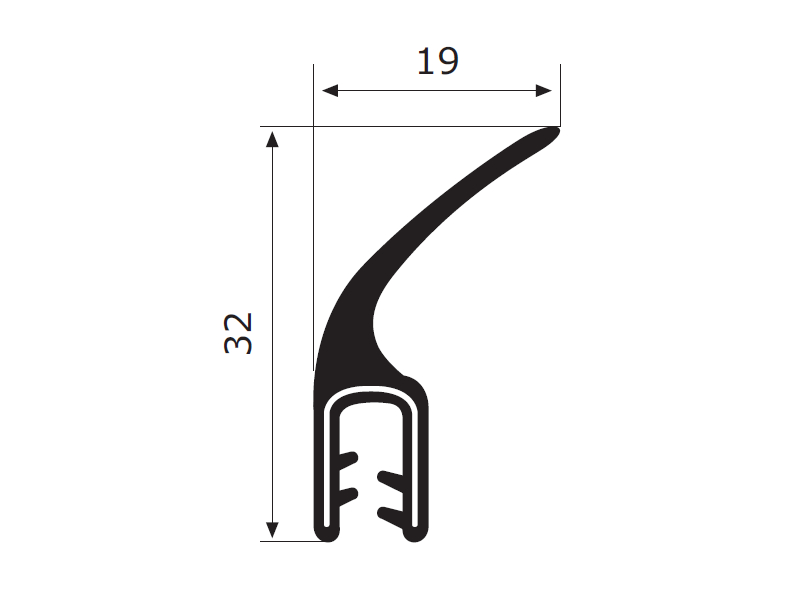

CodePhotoMaterial To roll away.SealantInsert

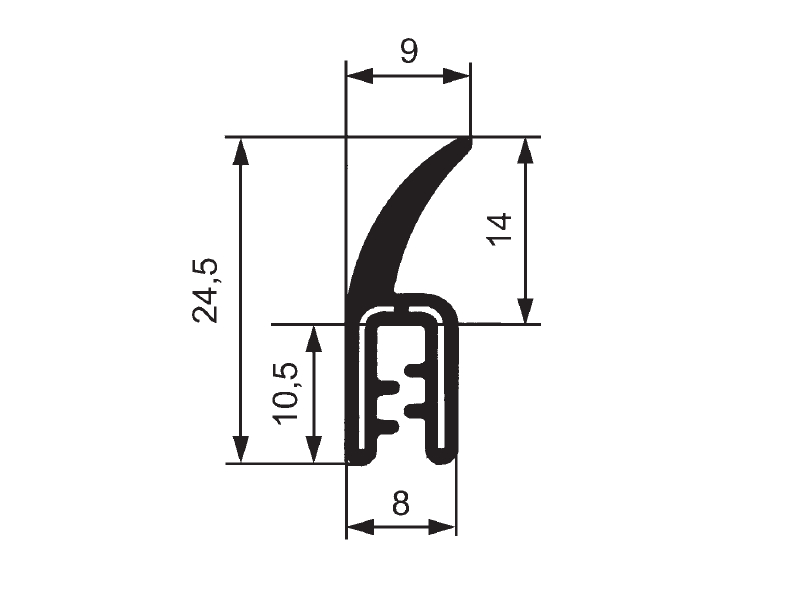

M10.7193
foro_profilo
GC25NOTHE

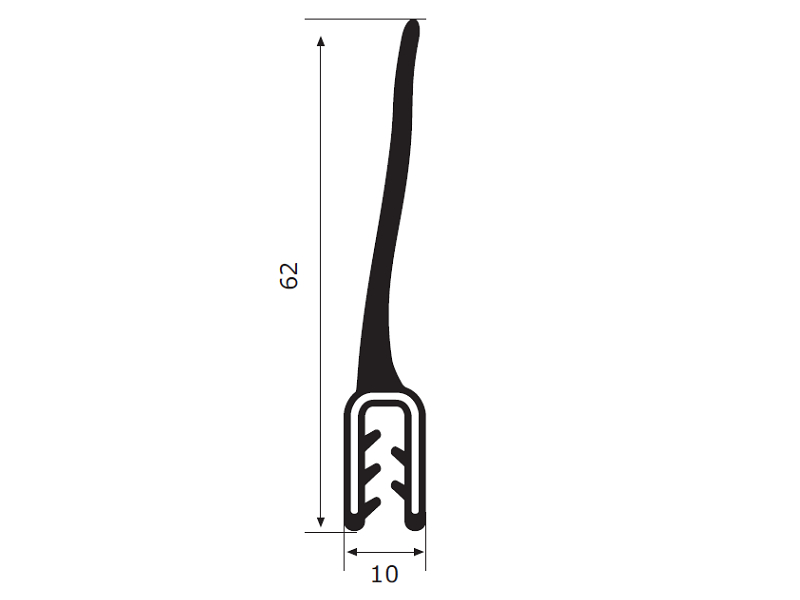

M10.6210
foto_profilo
GC25NOTHE

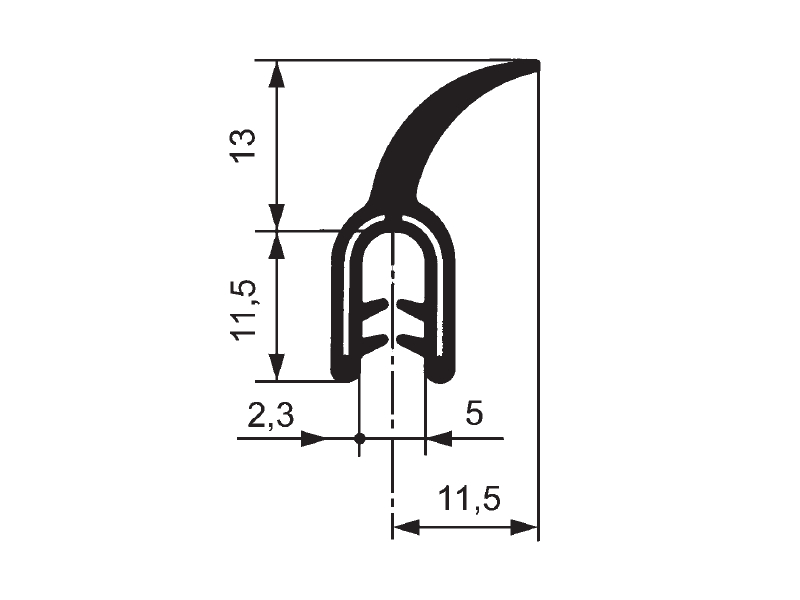

M10.7410
foro_profilo
GC25NOTHE

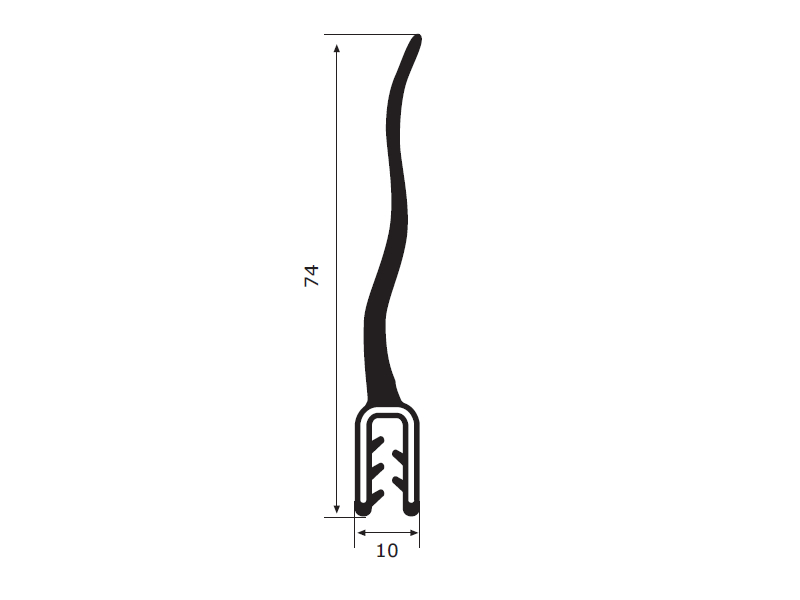

M10.3217
foto_profilo
GC100NOTHE

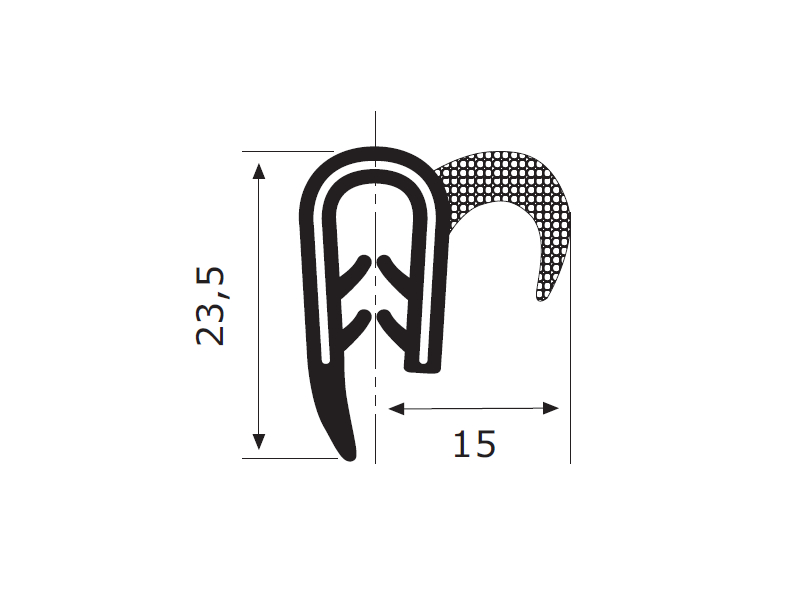

M10.0673
foro_profilo
GC25NOTHE

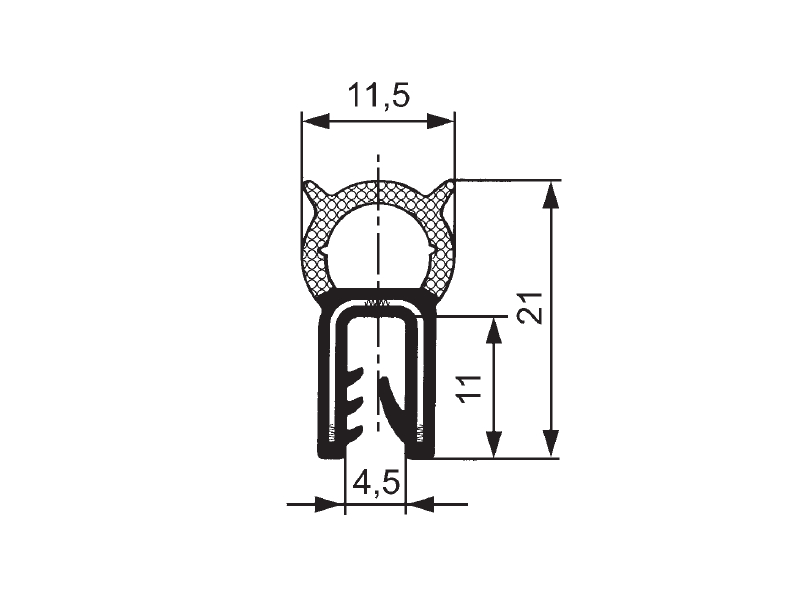

M10.7126
foto_profilo
GC25NOTHE

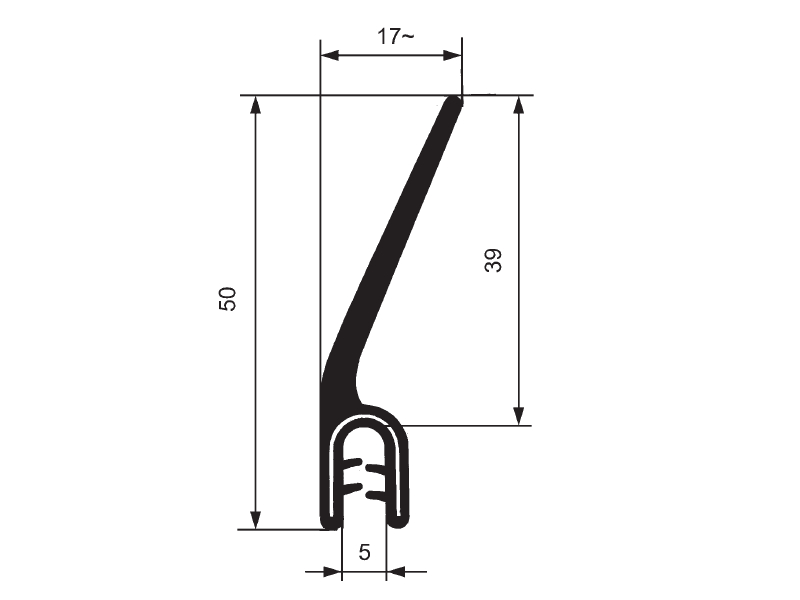

M10.8900
foro_profilo
GS + GC25NOTHE

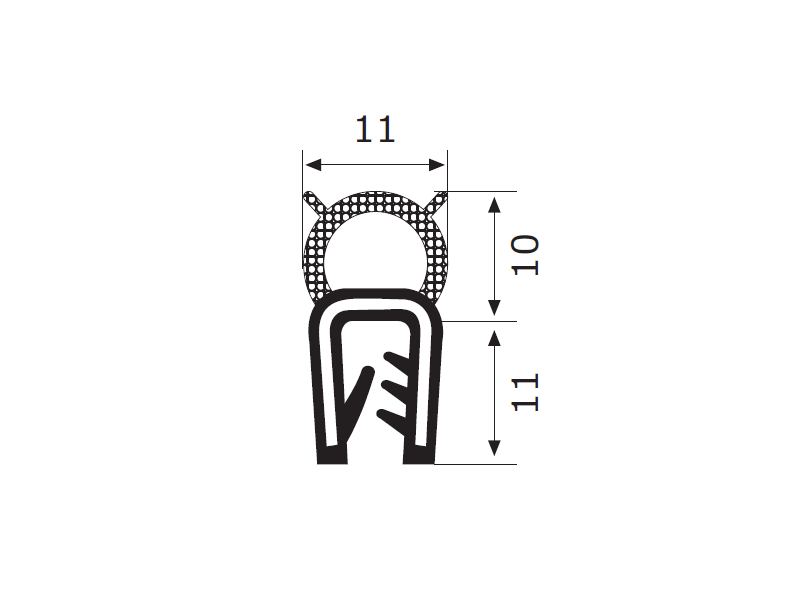

M10.7579
foto_profilo
GS + GC100NOTHE
M10.400
foro_profilo
GS + GC50NOIF

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
