Rubber shock absorbers, METAL RUBBER ENGINE MOUNT> 78 <





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reader

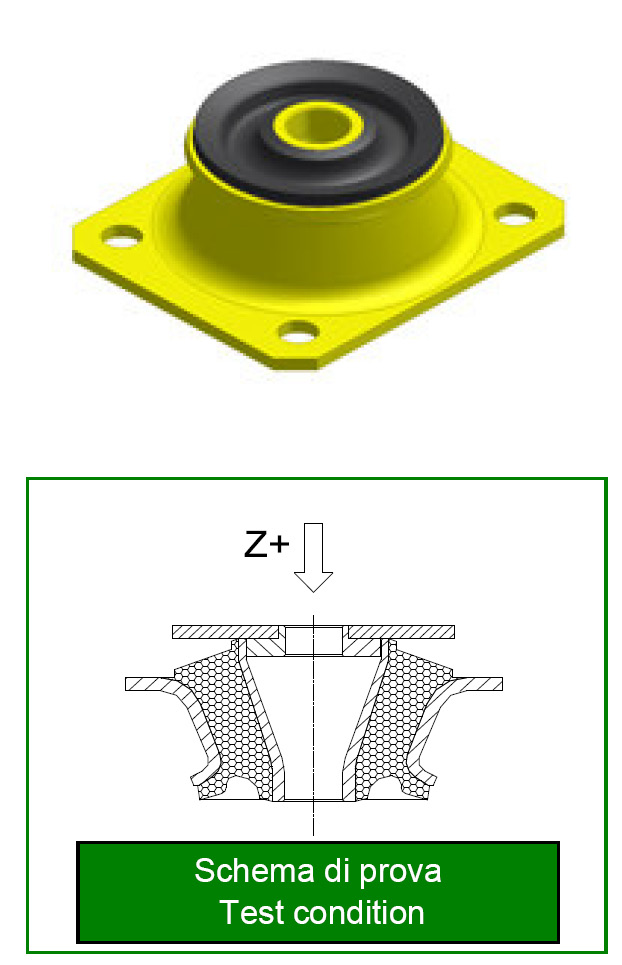

The special section called for shear and compression allows the use of cargoes with good axial deflections. The supports are fitted with two lock washers to limit overloads. They are particularly suitable for use as engine mounts and cab.

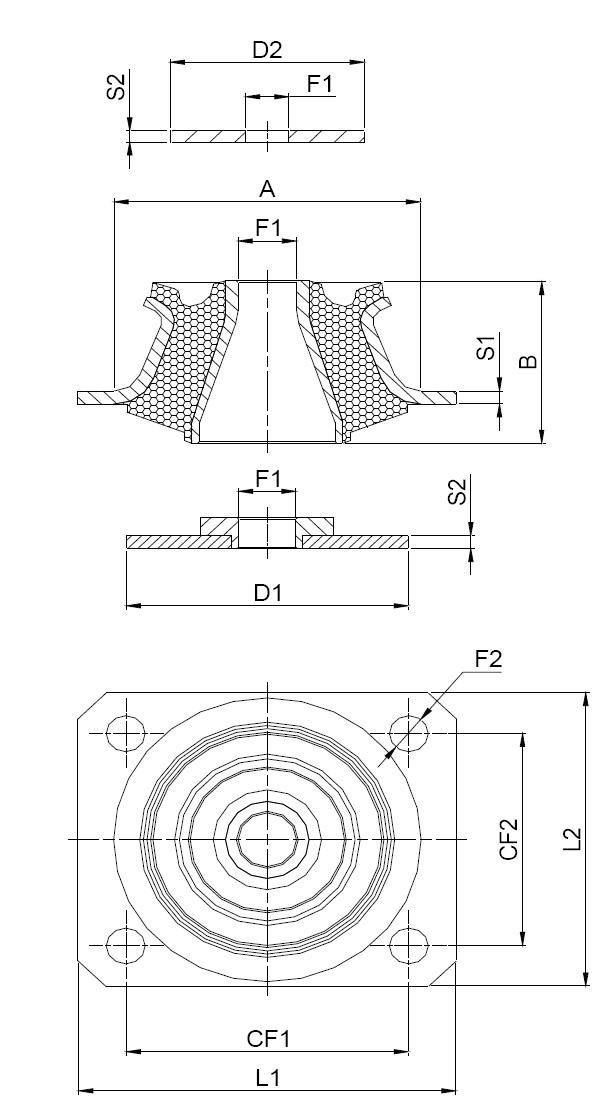

CodeHardness (IRHD) ABCF1CF2L1L2F1S1 F2 D1 - D2 - S2 - F1 Average Stiffness (kg / mm) Max load (kg) Max Deflection (mm)
M 1045785080651079016.541180 - 65 - 4 to 16321605
M 116078508065107 9016.541180 - 65 - 4 to 16 603505
M 1270785080651079016.541180 - 65 - 4 to 16984885
M 134578508065107 902041180 - 65 - 4 to 20 321605
M 146078508065107902041180 - 65 - 4 to 20603505
M 15707850806510 902041180 - 65 - 4 to 20 984885

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
