Rubber shock absorbers, METAL RUBBER FRAME ENGINE> 109 <





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reader

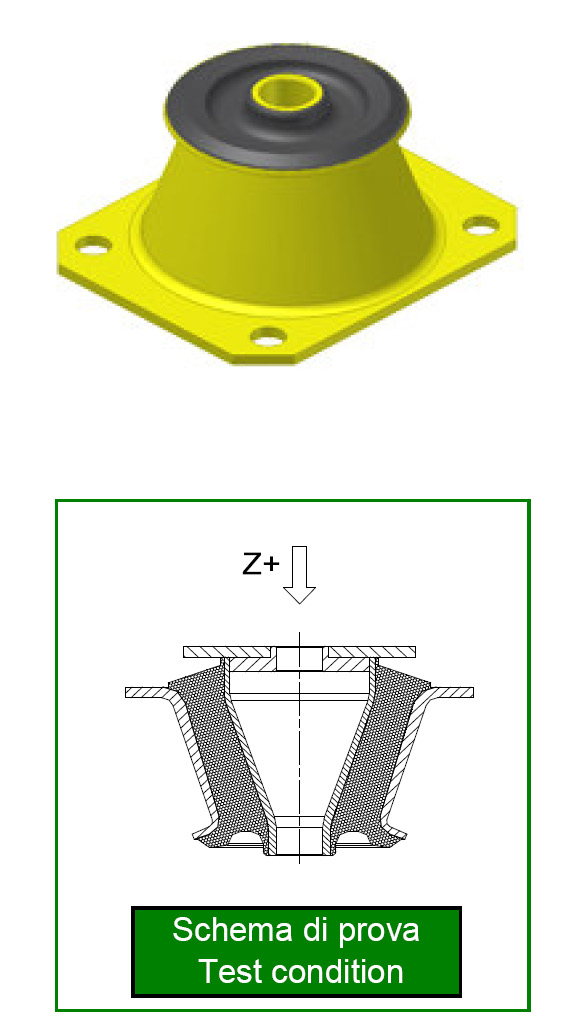

The special section called for shear and compression allows the use of cargoes with good axial deflections. The supports are fitted with two lock washers to limit overloads. They are particularly suitable for use as engine mounts and cab.

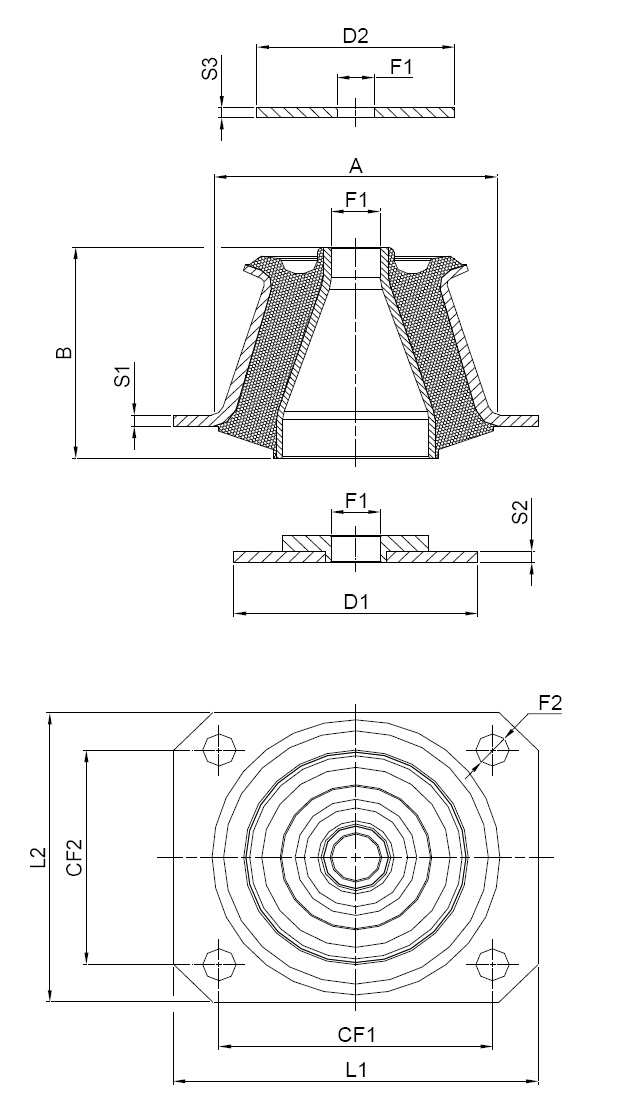

CodeHardness (IRHD) ABCF1CF2F1F2S1L1 L2 D1 - D2 - S2 - S3 Average Stiffness (kg / mm) Max load (kg) Max Deflection (mm)
M 1945109851129220114.5140120110 - 80 - 5-51154604
M 2060109851129220 114.5140120110 - 80 - 5-5 25011254.5
M 2170109851129220114.5140120110 - 80 - 5-537018505

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
