PROFILE SILICONE RUBBER "wing"





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reader




FEATURES:

Are profiled silicone compound used requiring a particular Temperature or contact with foodstuffs.

Can be extruded compound is compact compound is expanded when required.

The standard shore hardness profiles in silicone oil and 60 SH A.



MATERIALS:

GSC = Silicone Rubber Compact.



STANDARD COLORS:

- Neutral.

- White.

- Black

NOTES:

Profiles can be performed on design and technical specifications of the customer.



Tolerances Roll length: ± 5%.

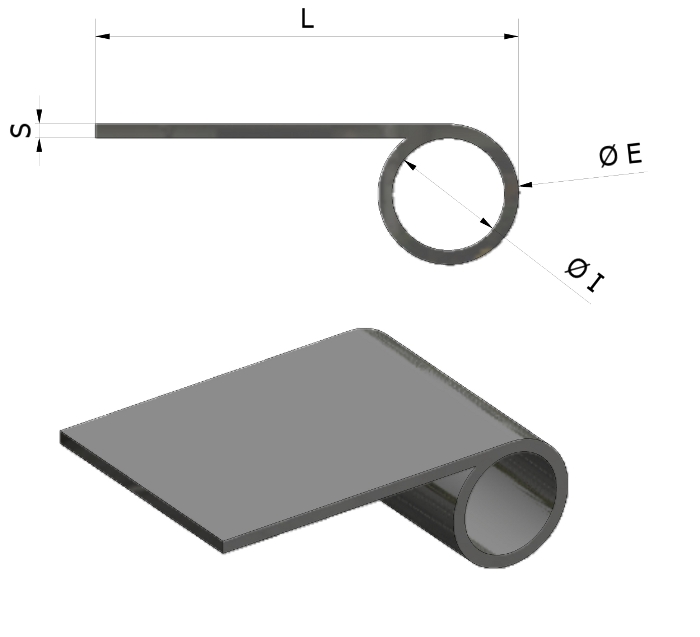

CodeØ (mm) Or E (mm)L (mm)S (mm)Weight gr / mt.Lotto min / m.
M10.186747331.592120
M10.08684.36.312.7127350
M10.008958201.575130
M10.1285611302.815380
M10.084161231.5319080
M10.0804711222130100
M10.0095711252100100
M10.007071125.5215080
M10.0793712302.516080
M10.08727.510.5301.595100
M10.077181230213580
M10.146381240215380
M10.016691332216580
M10.00121013211.597100
M10.10251013281.5104100
M10.1454101430315080
M10.0011101435217080
M10.1138101660333050
M10.11911021557
M10.11471115332.515680
M10.0300141855222850
M10.1506202547224850

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
