Rubber shock absorbers, METAL RUBBER ENGINE MOUNT> 48 <





 File_pdf

 DOWNLOAD CATALOG

 To view them you must have installed the program Adobe Acrobat Reader




The special section called for shear and compression allows the use of cargoes with good axial deflections. The supports are fitted with two lock washers to limit overloads. They are particularly suitable for use as engine mounts and cab.

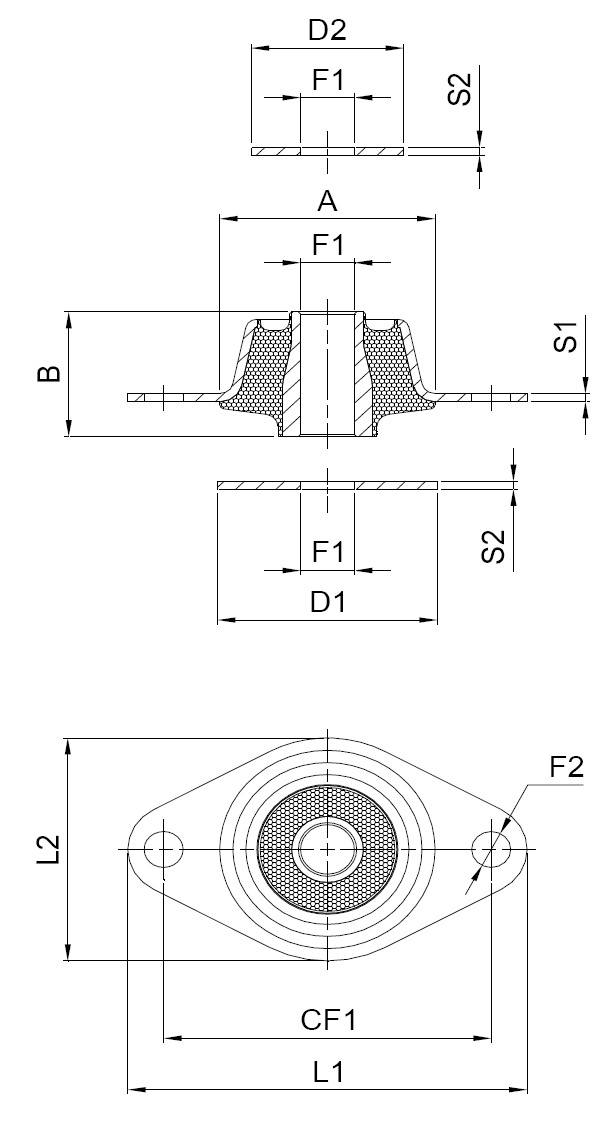

CodeHardness (IRHD) ABCF1CF2L1L2F1S1 F2 D1 - D2 - F1 - S2 Average Stiffness (kg / mm) Max load (kg) Max Deflection (mm)
MA 4454830.273-89541028.749 - 34 - 10-29364
MA 5604830.273-89 541028.749 - 34 - 10-2 15604
MA 6704830.273-89541028.749 - 34 - 10-221844
MA 7454830.273-89 541228.749 - 34 - 10-2 9364
MA 8604830.273-89541228.749 - 34 - 10-215604
MA 9704830.273-89 541228.749 - 34 - 10-2 21844

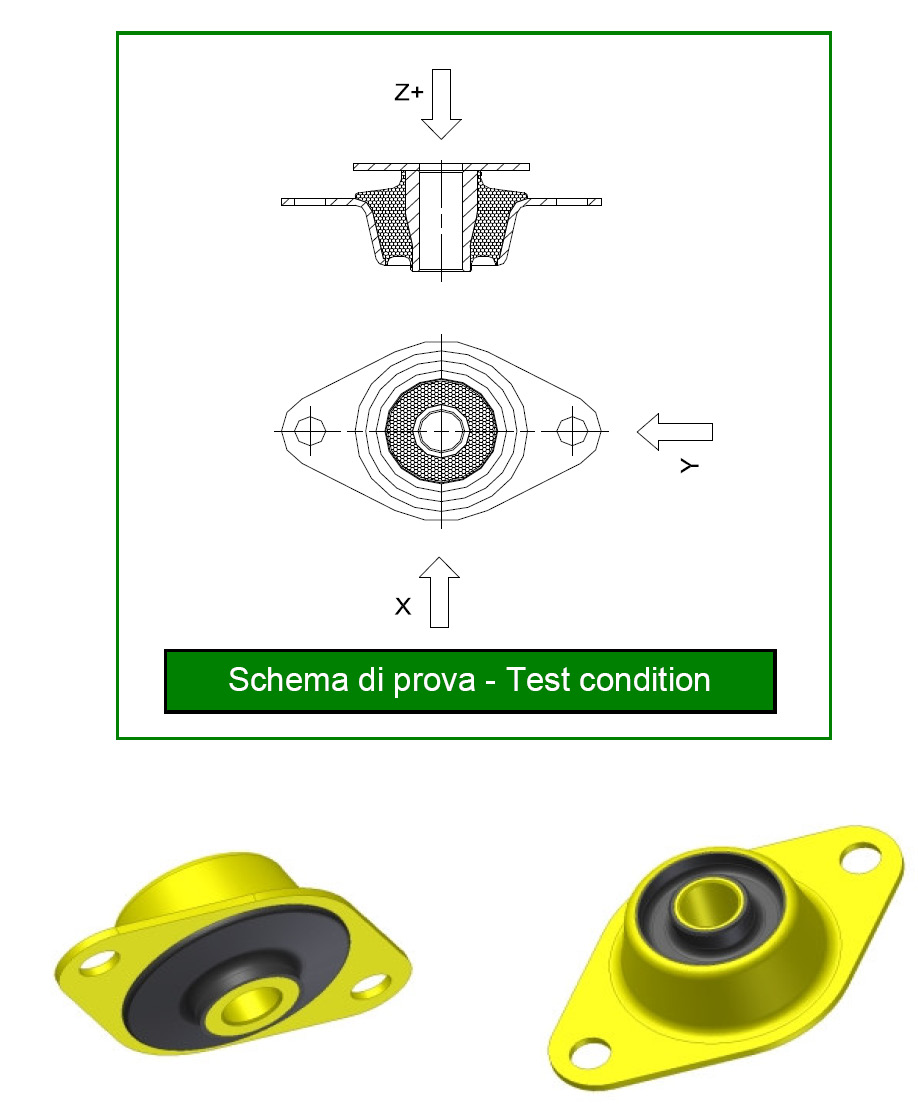

The data shown in the diagram above, may vary due to problems of realization. For any questions, feel free to contact us by going to the special section of CONTACTS to ask advice.
